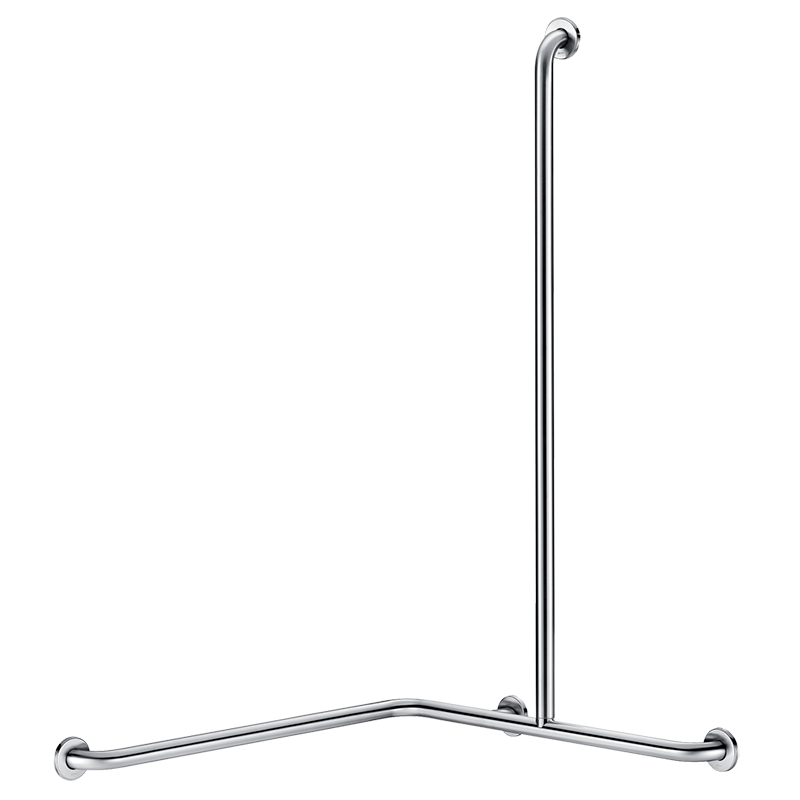

Angled shower grab bar with vertical bar, satin stainless steel
Ref. 5481DS
UltraSatin polished satin stainless steel, right model
UltraSatin polished satin stainless steel, right model
DESCRIPTION
Angled shower grab bar with vertical bar, satin stainless steel
Ref. 5481DSAngled, two-wall shower grab bar with vertical bar Ø 32mm, for people with reduced mobility.
Right model.
Can support a removable shower seat (order separately).
Can be used as a support bar and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Can be used as a shower rail by adding a sliding shower head holder and/or soap dish.

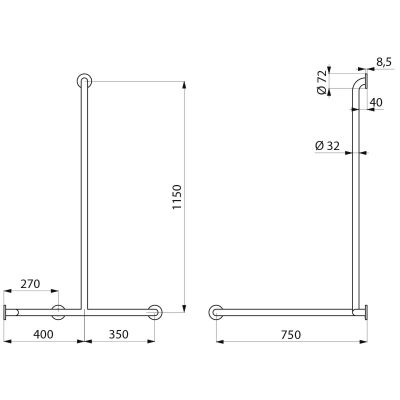

Dimensions: 1,150 x 750 x 750mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit”).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Fixings concealed by a 3-hole cover plate, Ø 72mm.
304 stainless steel plates and covers.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
30-year warranty. CE marked.
Right model.
Can support a removable shower seat (order separately).
Can be used as a support bar and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Can be used as a shower rail by adding a sliding shower head holder and/or soap dish.
Dimensions: 1,150 x 750 x 750mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit”).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Fixings concealed by a 3-hole cover plate, Ø 72mm.
304 stainless steel plates and covers.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
30-year warranty. CE marked.
ADVANTAGES
304 stainless steel: reduces bacterial development
Tested to over 200kg
40mm gap between bar and wall: minimal space
UltraSatin: smooth surface is easy to clean
TECHNICAL CHARACTERISTICS
Angled shower grab bar with vertical bar, satin stainless steel
Ref. 5481DSHeight | 1,150mm |
Length | 750mm |
Width | 750mm |
Diameter | Ø 32mm |
Width to the wall | 40mm |
Finish | 304 stainless steel UltraSatin polished satin |
Certificates | |
Warranty |
VARIANTS
5481P | Bright polished stainless steel UltraPolish - Sliding vertical riser rail | ||
---|---|---|---|
5481S | Polished satin stainless steel UltraSatin - Sliding vertical riser rail | ||
5481GP2 | Bright polished stainless steel UltraPolish - Fixed vertical riser rail on the left | ||
5481DP2 | Bright polished stainless steel UltraPolish - Fixed vertical riser rail on the right | ||
5481GS | Polished satin stainless steel UltraSatin - Fixed vertical riser rail on the left |
