DESCRIPTION

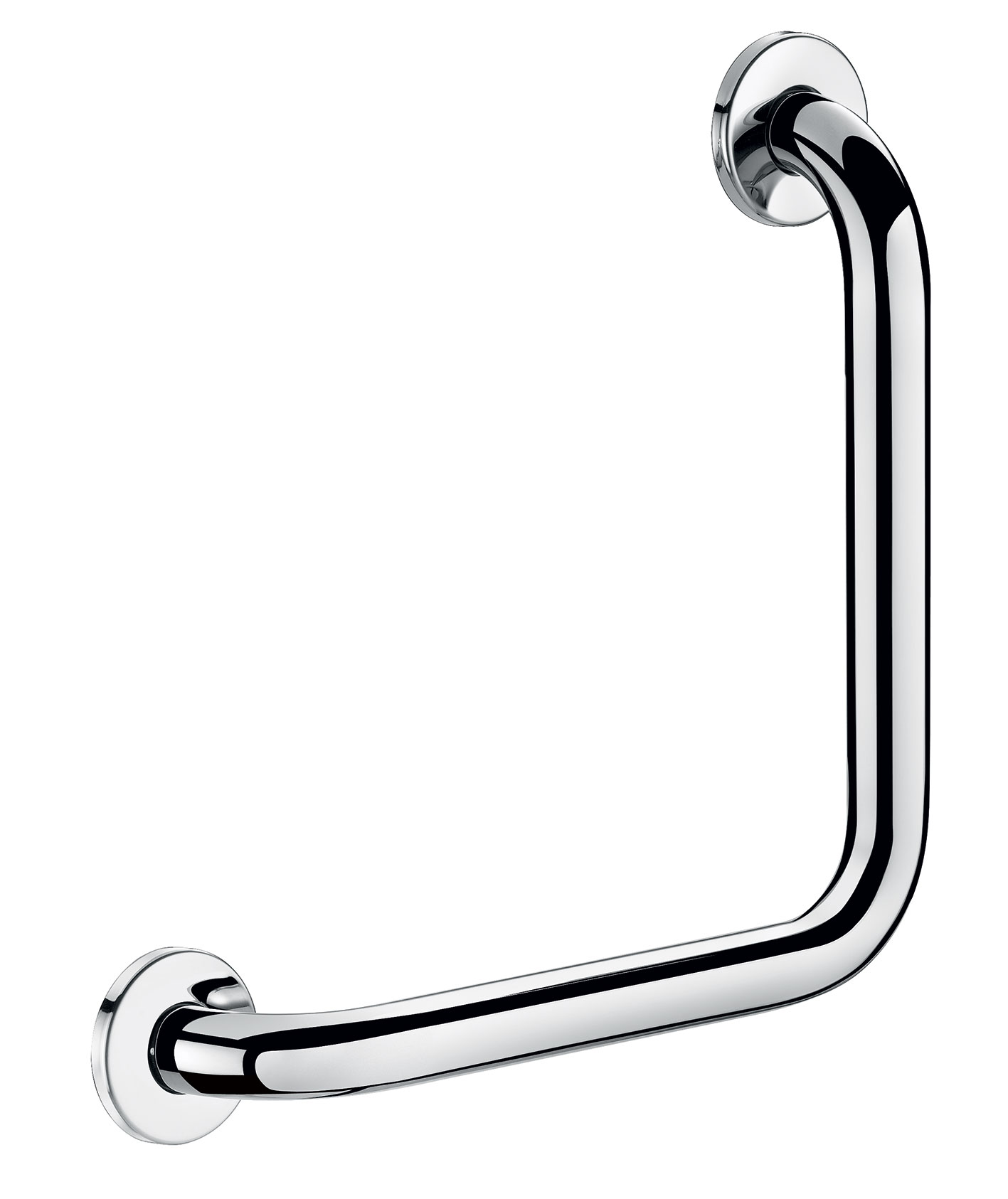

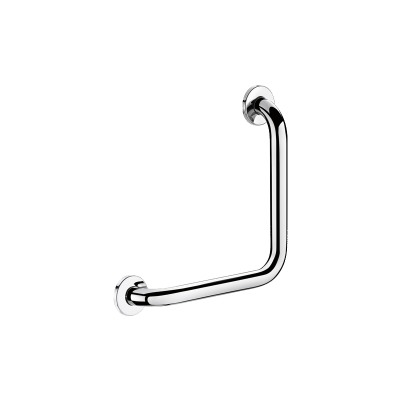

Angled grab bar 90°, Ø 32mm
Ref. 5180P2Angled grab bar 90° for people with reduced mobility.
For use as a handrail (horizontal part) or as a grab bar (vertical part) for WCs or baths.
Universal for either left or right side.

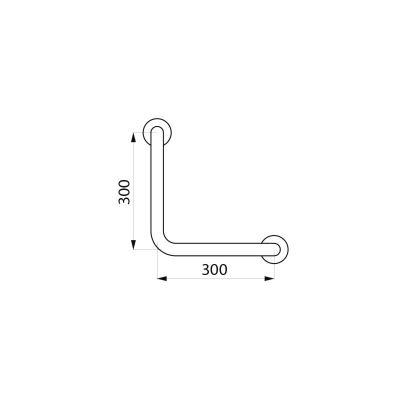

Dimensions: 300 x 300mm, Ø 32mm.
Bacteriostatic 304 stainless steel tube.
UltraPolish bright polished stainless steel, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit").
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings, secured to wall by a 3-hole, 304 stainless steel plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
For use as a handrail (horizontal part) or as a grab bar (vertical part) for WCs or baths.
Universal for either left or right side.
Dimensions: 300 x 300mm, Ø 32mm.
Bacteriostatic 304 stainless steel tube.
UltraPolish bright polished stainless steel, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit").
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings, secured to wall by a 3-hole, 304 stainless steel plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
ADVANTAGES
304 stainless steel: reduces bacterial development
Tested to over 200kg
40mm gap between bar and wall: minimal space
UltraPolishbasin: Smooth surface easy to clean
TECHNICAL CHARACTERISTICS
Angled grab bar 90°, Ø 32mm
Ref. 5180P2Height | 300mm |
Length | 300mm |
Diameter | Ø 32mm |
Width to the wall | 40mm |
Finish | 304 stainless steel UltraPolish bright polished |
Certificates | |
Warranty |
VARIANTS
5180S | Polished satin stainless steel UltraSatin |
---|
