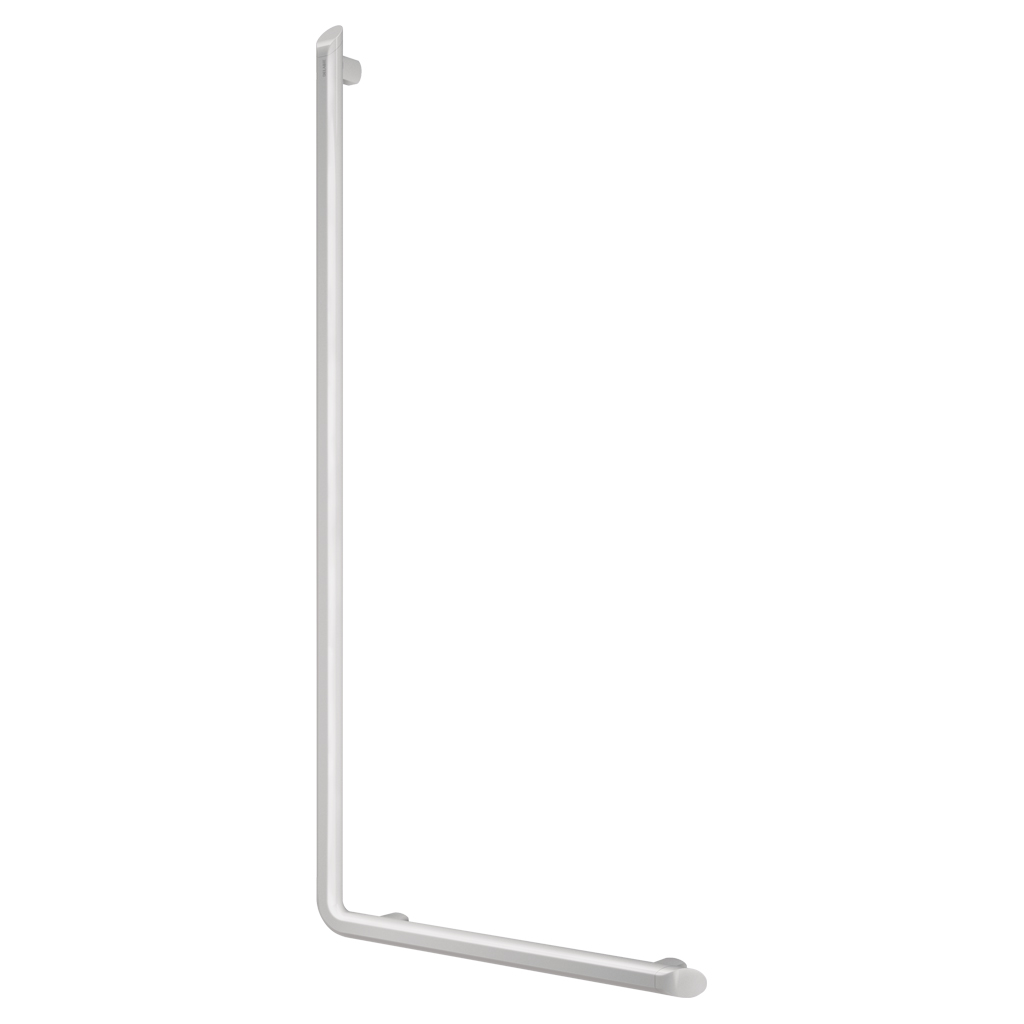

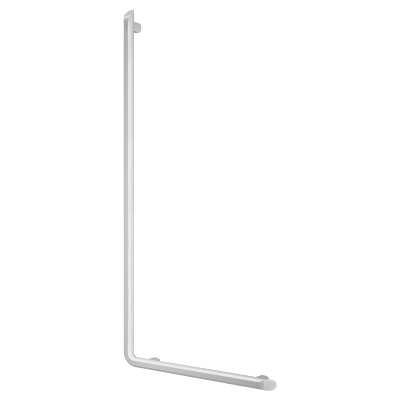

Be-line® L-shaped grab bar, matte white, H. 1,130mm

Ref. 511971W
Matte white powder-coated aluminium
Be-line® L-shaped grab bar, matte white, H. 1,130mm

Presentation

DESCRIPTION

Be-line® L-shaped grab bar, matte white, H. 1,130mm

Ref. 511971W
Be-line® L-shaped grab bar for showers or baths for people with reduced mobility.
Helps the user stand and move safely in the shower or bath.

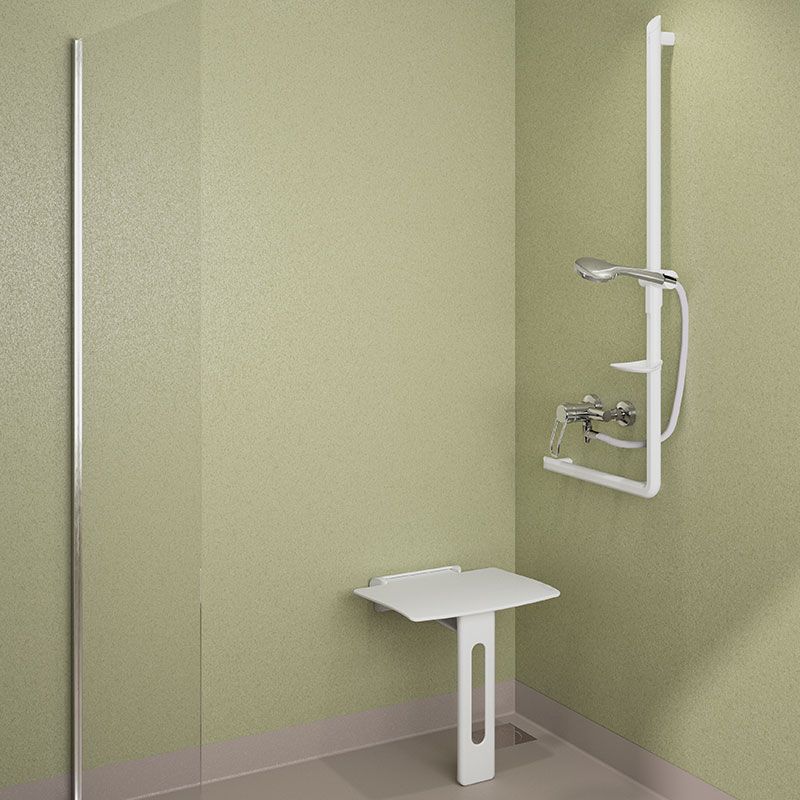

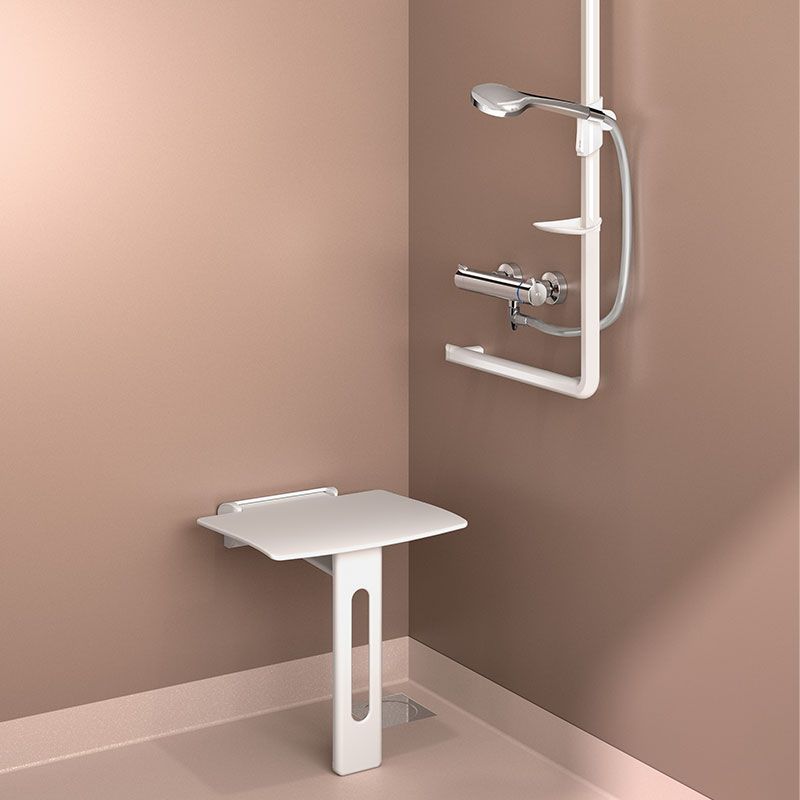

Use as a shower rail by adding a shower head holder and/or soap dish.
Can be installed with upright bar on the left or right.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium provides a good visual contrast with dark walls.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 1,130 x 450mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.

ADVANTAGES

Design

Innovative design suitable for all users

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic anti-rotation surface

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

38mm gap between bar and wall: space saving

Characteristics

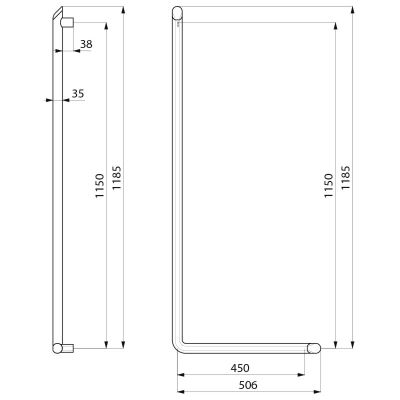

TECHNICAL CHARACTERISTICS

Be-line® L-shaped grab bar, matte white, H. 1,130mm

Ref. 511971W
Height 1,130mm
Length 450mm
Diameter Ø 35mm
Width to the wall 38mm
Thickness 3mm
Finish Matte white epoxy coated aluminium
Certificates Logo CE Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Be-line® L-shaped grab bar, matte white, H. 1,130mm

Ref. 511971W

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Be-line® L-shaped grab bar, matte white, H. 1,130mm

Ref. 511971W
1. 5119FIX
Mounting kit for Be-Line® grab bars

VARIANTS

511970C Metallised anthracite powder-coated aluminium - H.750mm
511971C Metallised anthracite powder-coated aluminium - H.1,130mm
511970BK Matte black powder-coated aluminium - H. 750mm
511971BK Matte black powder-coated aluminium - H. 1,130mm
511970W Matte white powder-coated aluminium - H.750mm
