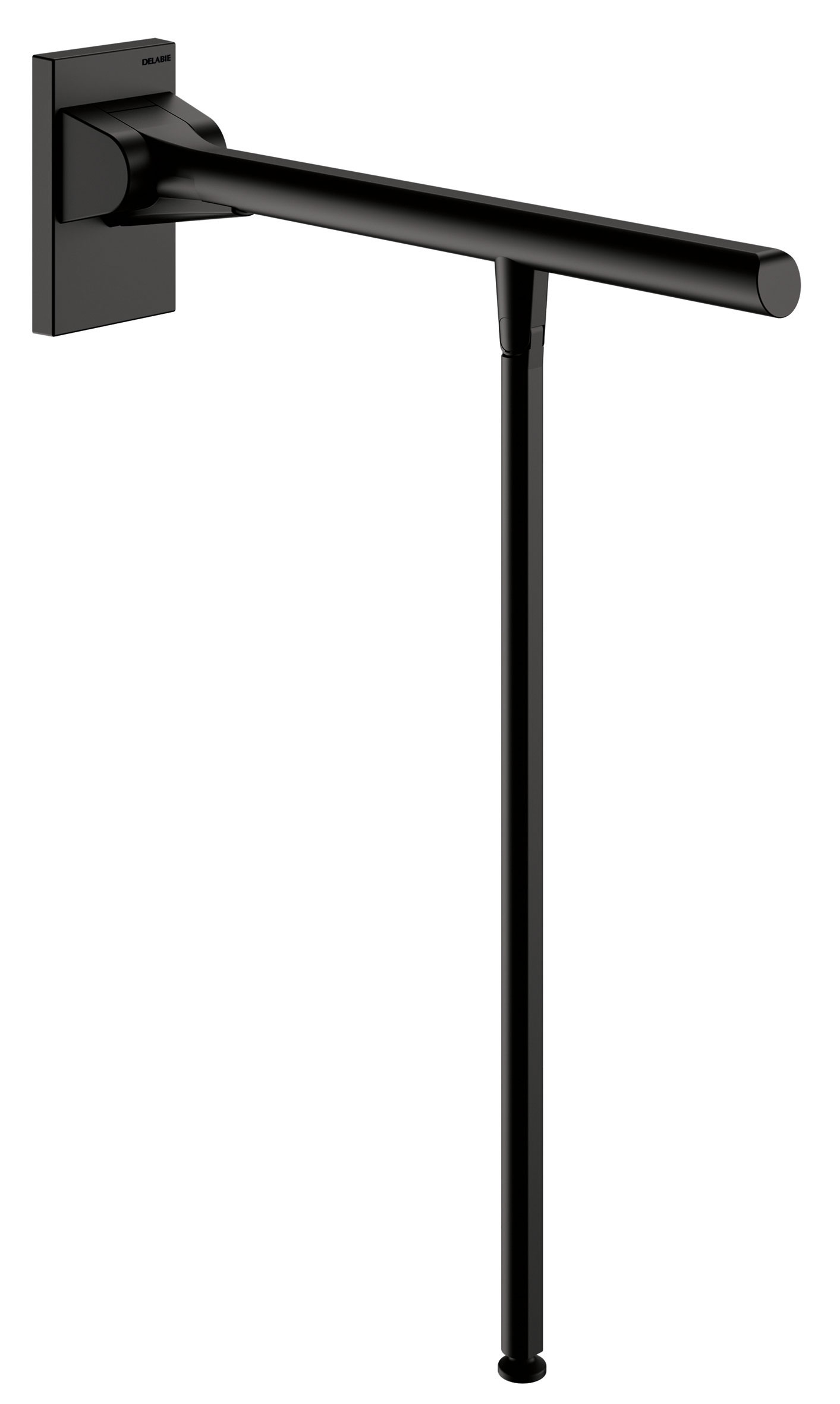

Be-Line drop-down support rail with leg, L. 650mm, matte black
Ref. 511962BK
Matte black powder-coated aluminium
Matte black powder-coated aluminium
DESCRIPTION
Be-Line drop-down support rail with leg, L. 650mm, matte black
Ref. 511962BKBe-Line® drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standing and for assisting movement, for WCs or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of bars in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for disabled people.
Drop-down rail retained in upright position. Slowed down descent.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated aluminium finish provides a good visual contrast with light-coloured walls.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Leg provides additional reinforcement when wall fixings are not enough.
Dimensions: 650 x 825 x 120mm.
Leg height can be adjusted from 760 - 780mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Drop-down rail with 30-year warranty.
CE marked.
In the lowered position use as a grab bar, as a support for standing and for assisting movement, for WCs or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of bars in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for disabled people.
Drop-down rail retained in upright position. Slowed down descent.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated aluminium finish provides a good visual contrast with light-coloured walls.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Leg provides additional reinforcement when wall fixings are not enough.
Dimensions: 650 x 825 x 120mm.
Leg height can be adjusted from 760 - 780mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Drop-down rail with 30-year warranty.
CE marked.
ADVANTAGES
Innovative, design-for-all, matte black finish
Removable: easy to unclip
Comfort: ergonomic flat face prevents rotation
Tested to over 200kg
TECHNICAL CHARACTERISTICS
Be-Line drop-down support rail with leg, L. 650mm, matte black
Ref. 511962BKHeight | 760 - 780mm, 905mm when raised |
Length | 650mm |
Width | 120mm |
Diameter | Ø 42mm |
Finish | Matte black powder-coated aluminium |
Certificates | |
Warranty |
VARIANTS
511962C | Metallised anthracite powder-coated aluminium - L.650mm | ||
---|---|---|---|
511962W | Matte white powder-coated aluminium - L.650mm | ||
511963C | Metallised anthracite powder-coated aluminium - L.850mm | ||
511963BK | Matte black powder-coated aluminium - L. 850mm | ||
511963W | Matte white powder-coated aluminium - L.850mm |
VARIANTS
511962C | Metallised anthracite powder-coated aluminium - L.650mm | ||
---|---|---|---|
511962W | Matte white powder-coated aluminium - L.650mm | ||
511963C | Metallised anthracite powder-coated aluminium - L.850mm | ||
511963BK | Matte black powder-coated aluminium - L. 850mm | ||
511963W | Matte white powder-coated aluminium - L.850mm |
