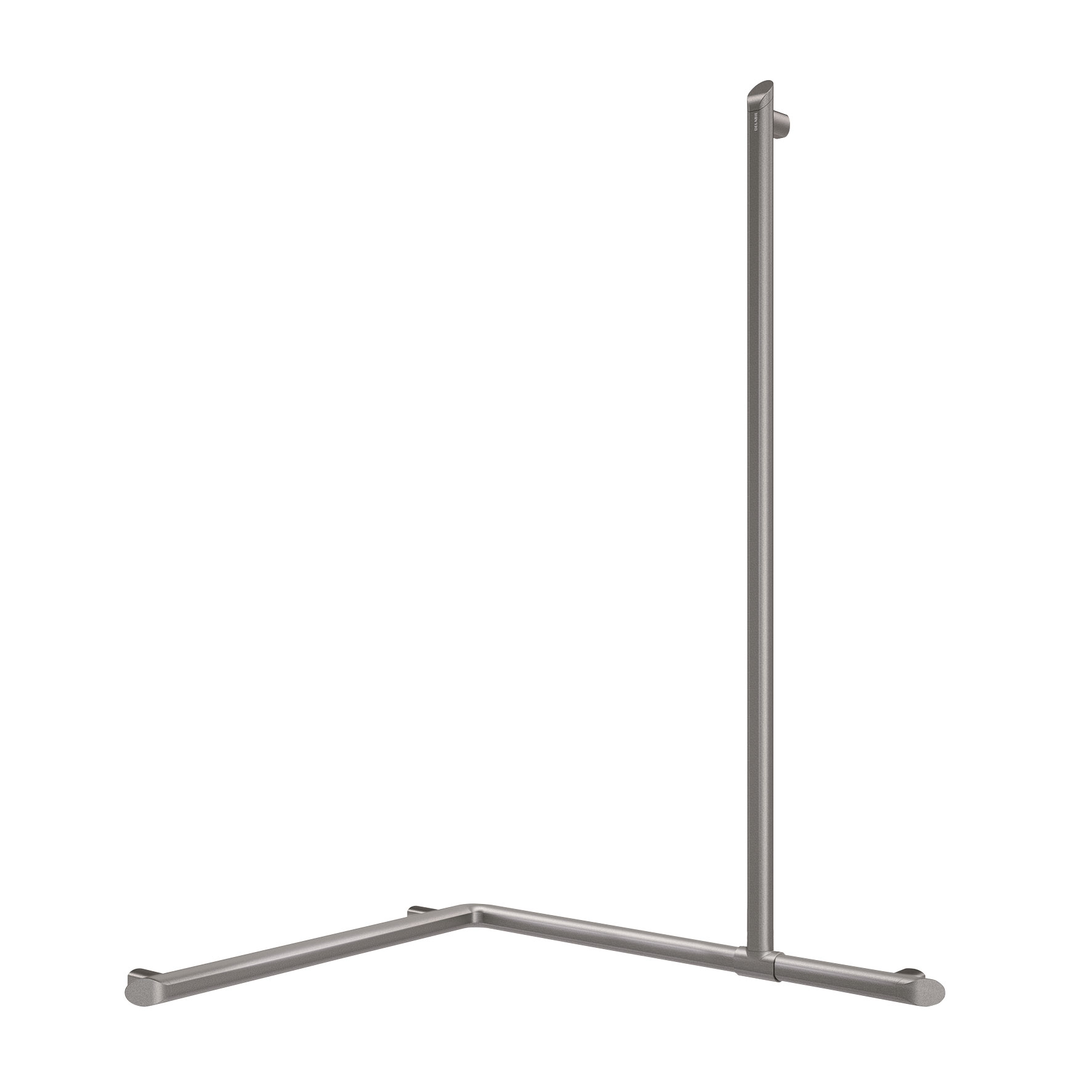

Be-line® corner grab bar with sliding vertical rail
Ref. 511949C
Metallised anthracite powder-coated aluminium
Metallised anthracite powder-coated aluminium
DESCRIPTION
Be-line® corner grab bar with sliding vertical rail
Ref. 511949CBe-line® corner grab bar with sliding vertical rail Ø 35mm.
Use as a grab bar and to support the user in an upright position for people with reduced mobility.
Helps and secures entry and movement in the shower.
Use as a shower rail by adding a shower head holder and/or soap dish.
Upright position can be adjusted during installation: can be moved to the left or the right in order to adapt the space (positioning of shower, depth of shower seat...).
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish provides a good visual contrast with light-coloured walls.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 1,130 x 695 x 6950mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
Use as a grab bar and to support the user in an upright position for people with reduced mobility.
Helps and secures entry and movement in the shower.
Use as a shower rail by adding a shower head holder and/or soap dish.
Upright position can be adjusted during installation: can be moved to the left or the right in order to adapt the space (positioning of shower, depth of shower seat...).
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish provides a good visual contrast with light-coloured walls.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 1,130 x 695 x 6950mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
ADVANTAGES
Innovative design suitable for all users
Upright position can be adjusted
Comfort: ergonomic anti-rotation surface
Tested to over 200kg
TECHNICAL CHARACTERISTICS
Be-line® corner grab bar with sliding vertical rail
Ref. 511949CHeight | 1,130mm |
Length | 695mm |
Width | 695mm |
Diameter | Ø 35mm |
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Metallised anthracite powder-coated aluminium |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
Be-line® corner grab bar with sliding vertical rail
Ref. 511949C1. | 5119FIX |
|
Mounting kit for Be-Line® grab bars |
VARIANTS
511949BK | Matte black powder-coated aluminium | ||
---|---|---|---|
511949W | Matte white powder-coated aluminium |
