Be-line® corner grab bar 2 walls, matte black

Ref. 511941BK
Matte black powder-coated aluminium
Be-line® corner grab bar 2 walls, matte black

Presentation

DESCRIPTION

Be-line® corner grab bar 2 walls, matte black

Ref. 511941BK
Be-Line® corner grab bar Ø 35mm for WCs, showers or baths.
Use as a shower rail and to support people with reduced mobility in an upright position.
Helps and secures entry and movement in the shower also with getting in and out of the bath.
Helps with the transfer from a wheelchair to the toilet seat.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Angled grab bar with concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 695 x 695 mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Grab bar with 30-year warranty. CE marked.

ADVANTAGES

Design

Innovative design suitable for all users

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic anti-rotation surface

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

38mm gap between bar and wall: space saving

Characteristics

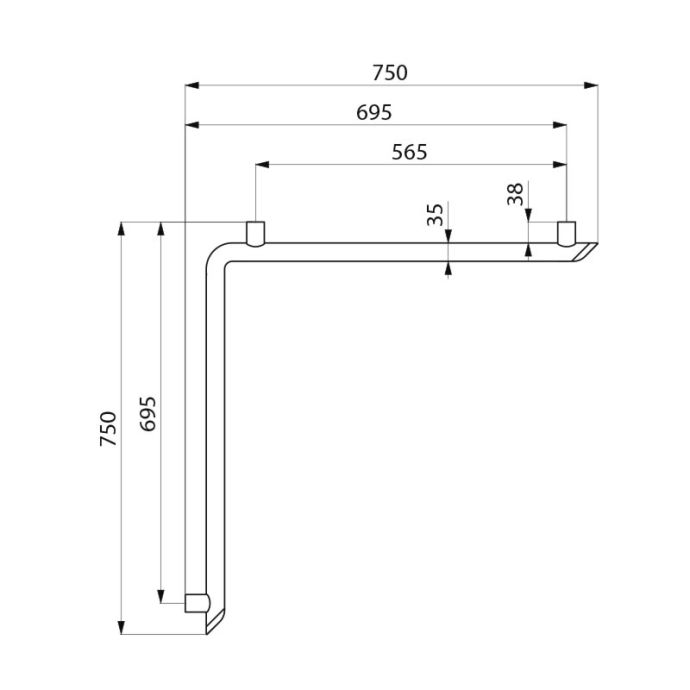

TECHNICAL CHARACTERISTICS

Be-line® corner grab bar 2 walls, matte black

Ref. 511941BK
Length 695 mm
Width 695 mm
Diameter Ø 35mm
Width to the wall 38 mm
Thickness 3 mm
Finish Matte black powder-coated aluminium
Certificates Logo CE
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Be-line® corner grab bar 2 walls, matte black

Ref. 511941BK

To download one or several documents linked to this product, please select the type of file you require :

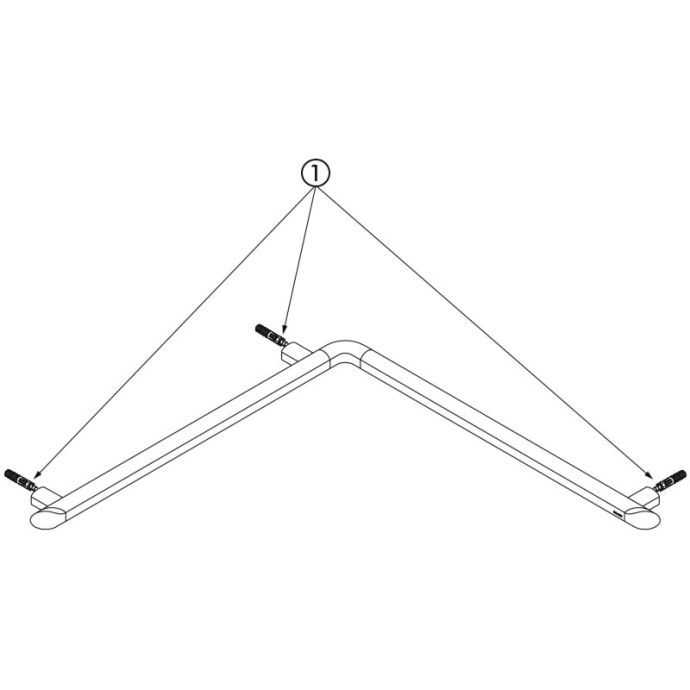

Spare parts

SPARE PARTS

Be-line® corner grab bar 2 walls, matte black

Ref. 511941BK
1. 5119FIX
Mounting kit for Be-Line® grab bars

VARIANTS

511941C Metallised anthracite powder-coated aluminium
511941W Matte white powder-coated aluminium
