DESCRIPTION

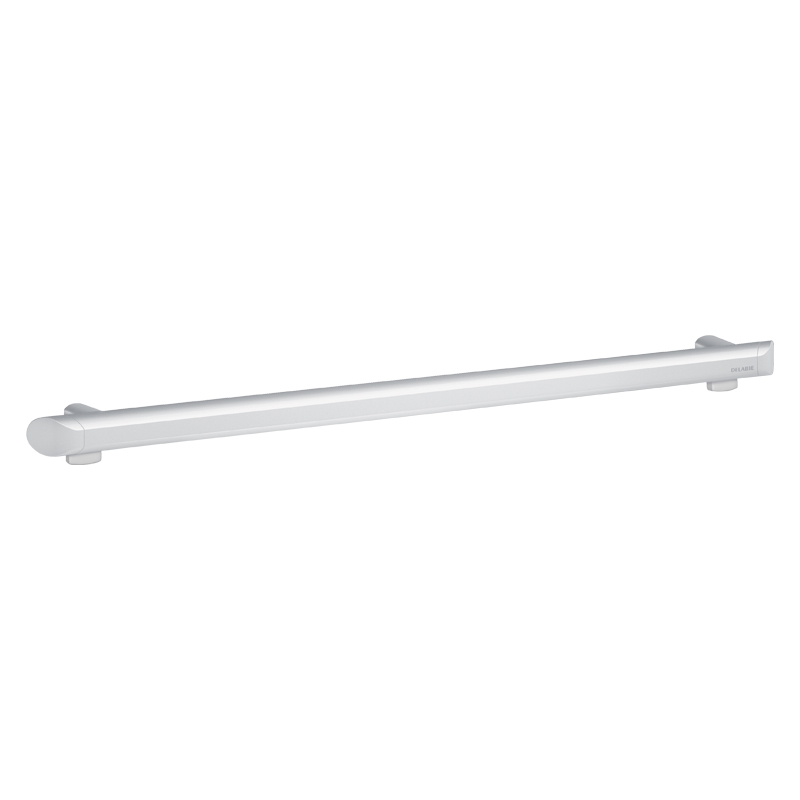

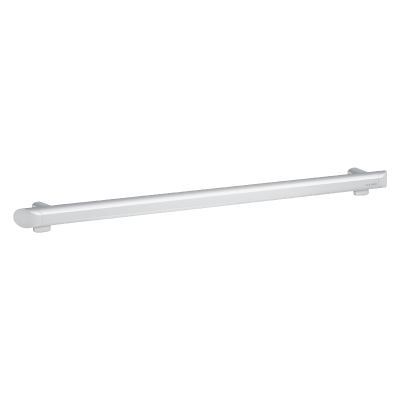

Be-Line® DOC M grab bar matte white, 600mm
Ref. 511906MWBe-Line® DOC M grab bar Ø 35mm, for people with reduced mobility.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface is easy to clean and maintain.
60mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
600mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
DOC M compliant.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface is easy to clean and maintain.
60mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
600mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
DOC M compliant.
ADVANTAGES
Innovative design for all
Comfort: ergonomic anti-rotation surface
Tested to over 200kg
DOC M compliant

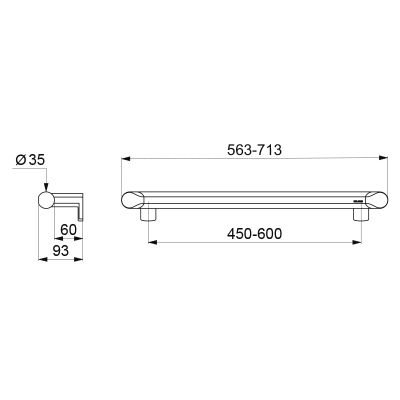

TECHNICAL CHARACTERISTICS
Be-Line® DOC M grab bar matte white, 600mm
Ref. 511906MWLength | 600mm |
Diameter | Ø 35mm |
Width to the wall | 60mm |
Thickness | 3mm |
Finish | Matte white powder-coated aluminium |
Warranty |
VARIANTS
511904MC | Metallised anthracite powder-coated aluminium - 450mm | ||
---|---|---|---|
511904MBK | Matte black powder-coated aluminium - 450mm | ||
511904MW | Matte white powder-coated aluminium - 450mm | ||
511906MC | Metallised anthracite powder-coated aluminium - 600mm | ||
511906MBK | Matte black powder-coated aluminium - 600mm |
VARIANTS
511904MC | Metallised anthracite powder-coated aluminium - 450mm | ||
---|---|---|---|
511904MBK | Matte black powder-coated aluminium - 450mm | ||
511904MW | Matte white powder-coated aluminium - 450mm | ||
511906MC | Metallised anthracite powder-coated aluminium - 600mm | ||
511906MBK | Matte black powder-coated aluminium - 600mm |
