DESCRIPTION

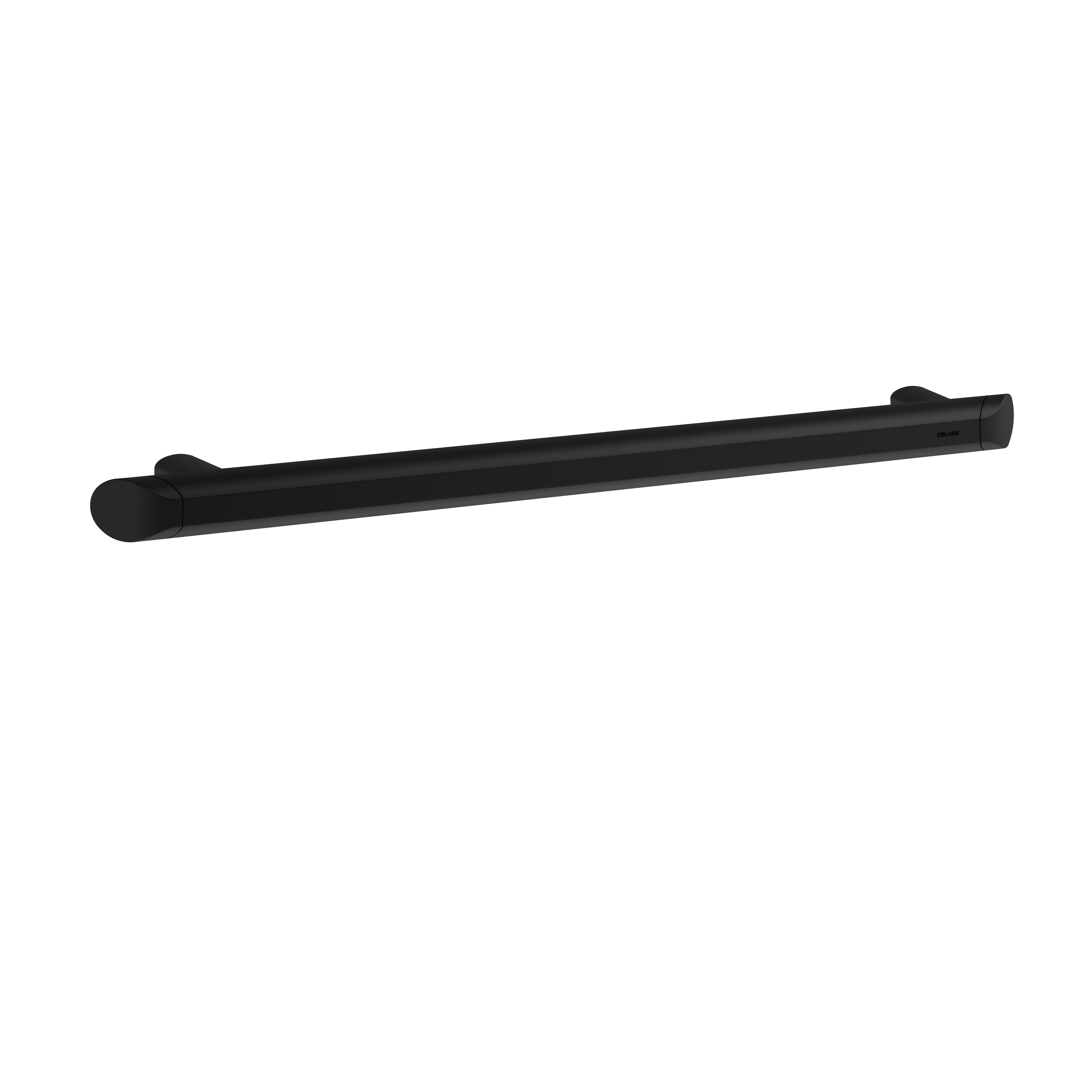

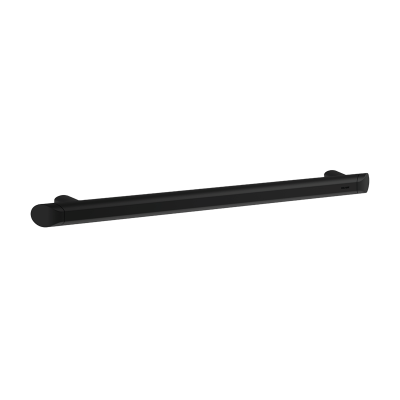

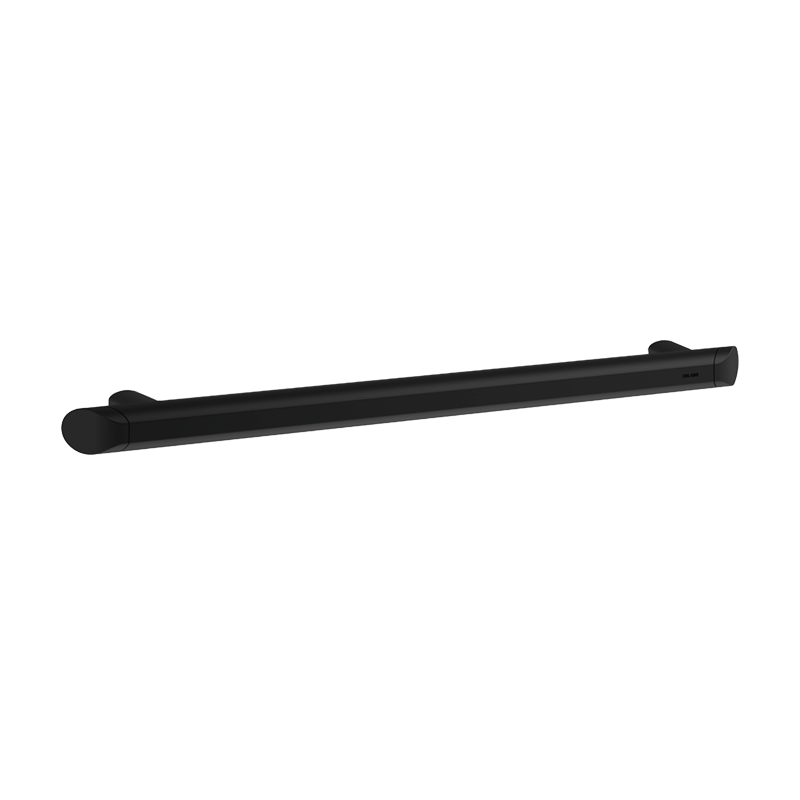

Be-Line® matte black grab bar, 500mm Ø 35mm
Ref. 511905BKBe-Line® grab bar Ø 35mm, for people with reduced mobility.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
500mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Grab bar with a 30-year warranty. CE marked.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
500mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Grab bar with a 30-year warranty. CE marked.
ADVANTAGES
Innovative, design-for-all, matte black finish
Comfort: ergonomic anti-rotation surface
Tested to over 200kg
38mm gap between bar and wall: space saving

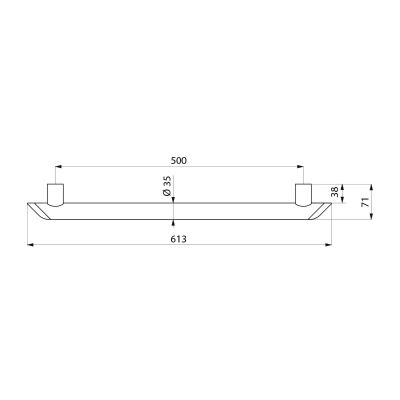

TECHNICAL CHARACTERISTICS
Be-Line® matte black grab bar, 500mm Ø 35mm
Ref. 511905BKLength | 500mm |
Diameter | Ø 35mm |
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Matte black 304 stainless steel |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
Be-Line® matte black grab bar, 500mm Ø 35mm
Ref. 511905BK1. | 5119FIX |
|
Mounting kit for Be-Line® grab bars |
VARIANTS
511903BK | Matte black powder-coated aluminium - 300mm | ||
---|---|---|---|
511904BK | Matte black powder-coated aluminium - 400mm | ||
511906BK | Matte black powder-coated aluminium - 600mm | ||
511909BK | Matte black powder-coated aluminium - 900mm |
VARIANTS
511903BK | Matte black powder-coated aluminium - 300mm | ||
---|---|---|---|
511904BK | Matte black powder-coated aluminium - 400mm | ||
511906BK | Matte black powder-coated aluminium - 600mm | ||
511909BK | Matte black powder-coated aluminium - 900mm |
