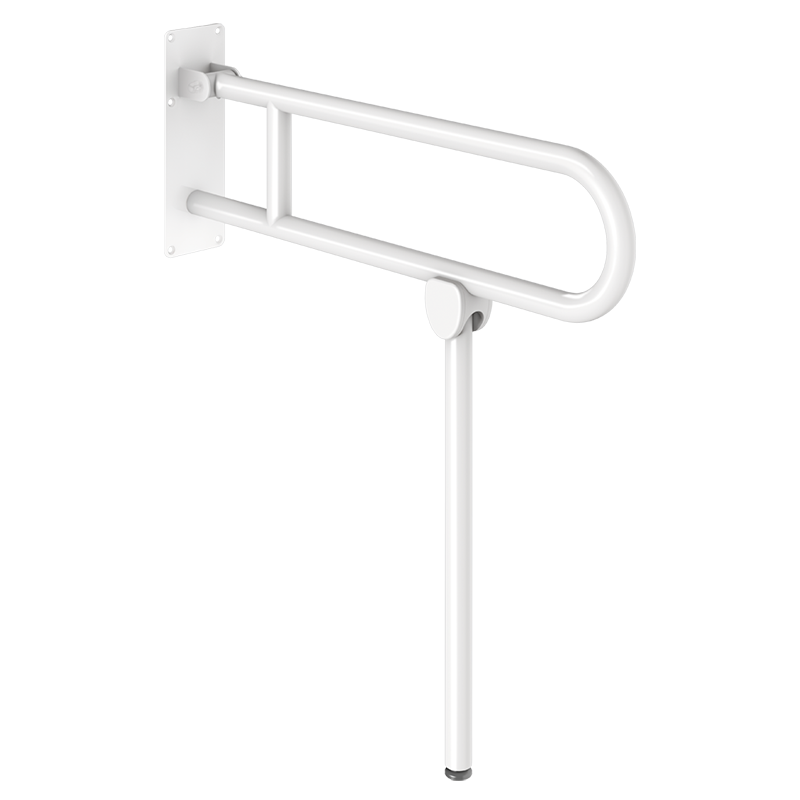

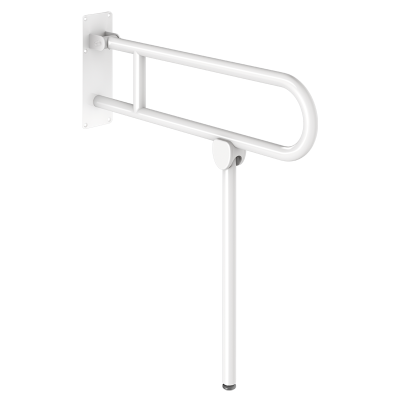

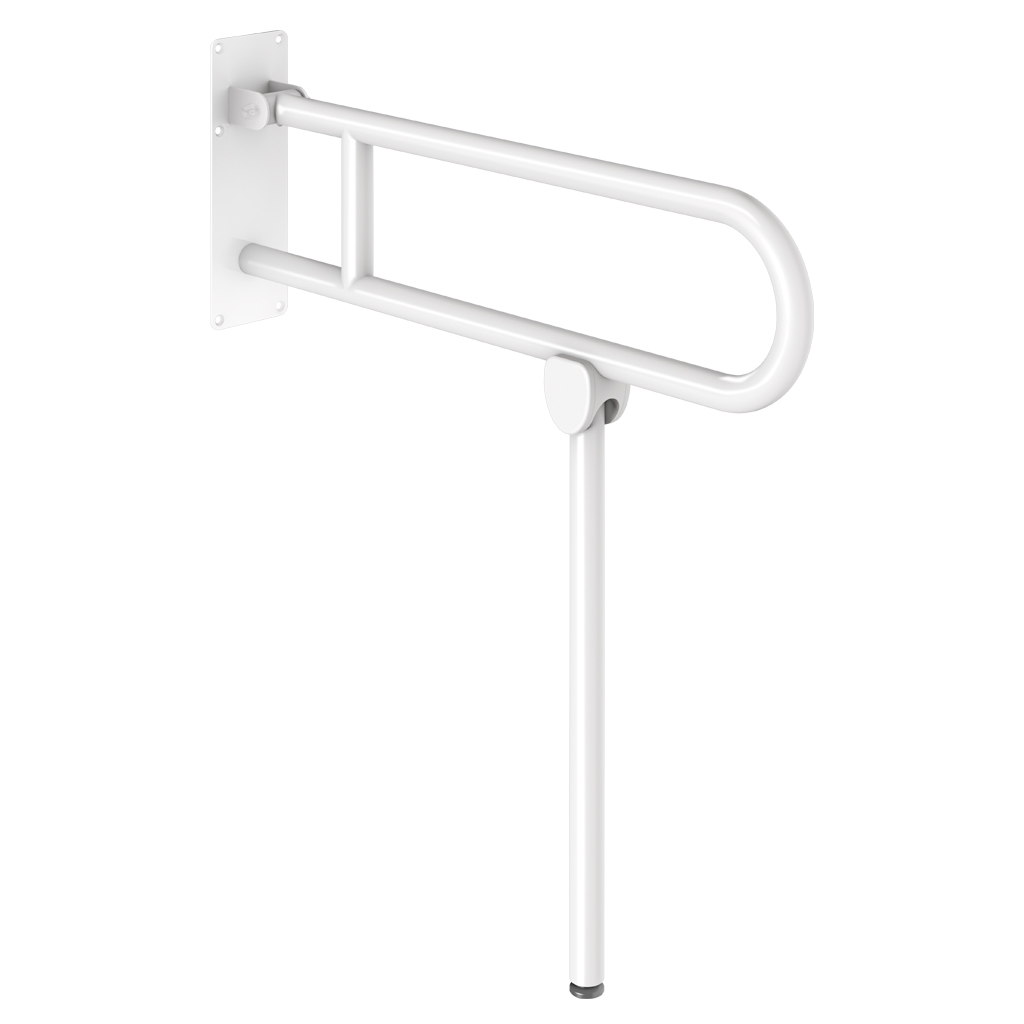

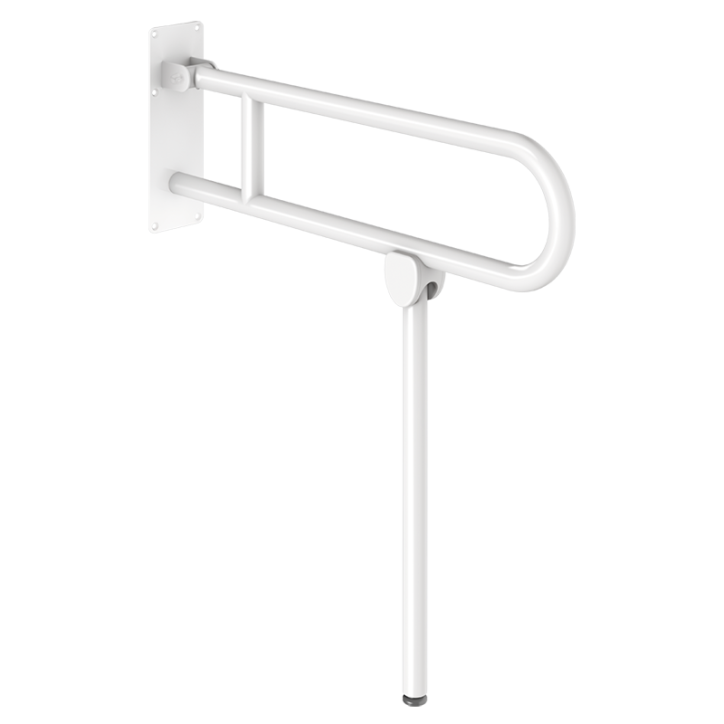

Basic drop-down support rail, white, L. 760 mm, with leg

Ref. 511517W
White powder-coated stainless steel
Basic drop-down support rail, white, L. 760 mm, with leg

Presentation

DESCRIPTION

Basic drop-down support rail, white, L. 760 mm, with leg

Ref. 511517W
Basic drop-down support rail Ø 32mm with leg, for people with reduced mobility.
Basic drop-down grab bar made from white powder-coated stainless steel for WCs or showers.
Model with automatic folding leg: to be used as a reinforcement when the wall fixing alone is insufficient.
Leg height can be adjusted from 760 to 780mm.
Visible fixings, secured to wall by a 6-hole plate.
Wall plate thickness: 3.5mm.
Dimensions: 760 x 815 x 100mm.
30-year warranty.
CE marked.

ADVANTAGES

Sécurité

Tested to over 200kg

Confort - Ergonomie - Déclenchement souple

Diameter adapted for optimal grip

Nettoyage aisé

Smooth surface is easy to clean

Characteristics

TECHNICAL CHARACTERISTICS

Basic drop-down support rail, white, L. 760 mm, with leg

Ref. 511517W

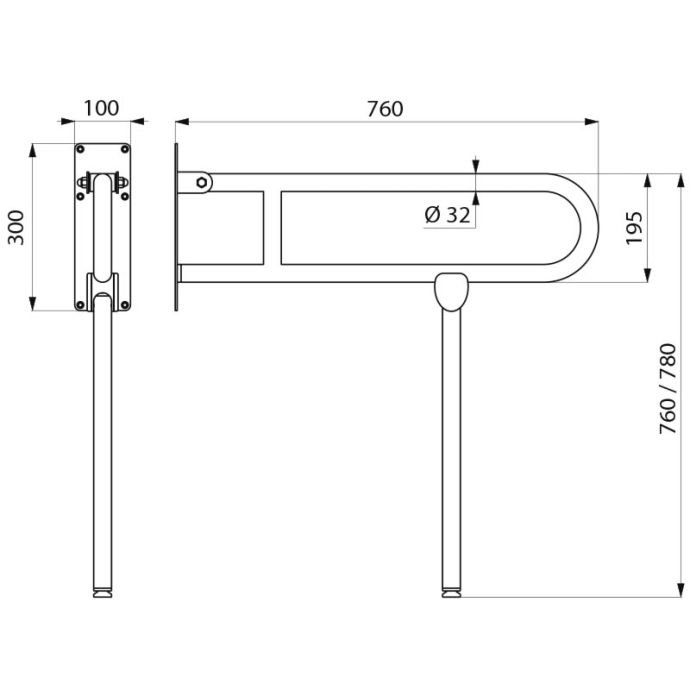

Height 815mm, bar: 760 - 780mm
Length 760mm
Width 100mm
Diameter 32mm
Finish White powder-coated stainless steel
Certificates Logo CE Logo PZH
Warranty 30-Year
Basic drop-down support rail, white, L. 760 mm, with leg
Ref. 511517W

Downloads

DOWNLOADS

Barre de maintien rabattable avec béquille Basic blanc, L. 760 mm

Ref. 511517W

To download one or several documents linked to this product, please select the type of file you require :

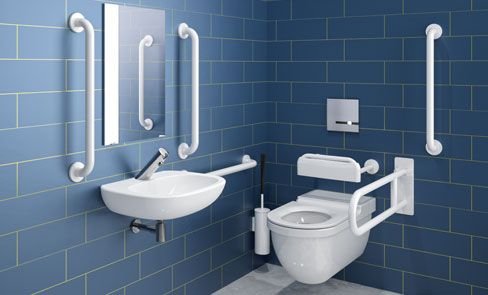

Standards and regulations for disabled toilets
Standards and regulations for disabled toilets
