Stainless steel drop-down rail with leg, satin, L. 850mm

Ref. 510170S
UltraSatin polished satin stainless steel
Stainless steel drop-down rail with leg, satin, L. 850mm

Presentation

DESCRIPTION

Stainless steel drop-down rail with leg, satin, L. 850mm

Ref. 510170S

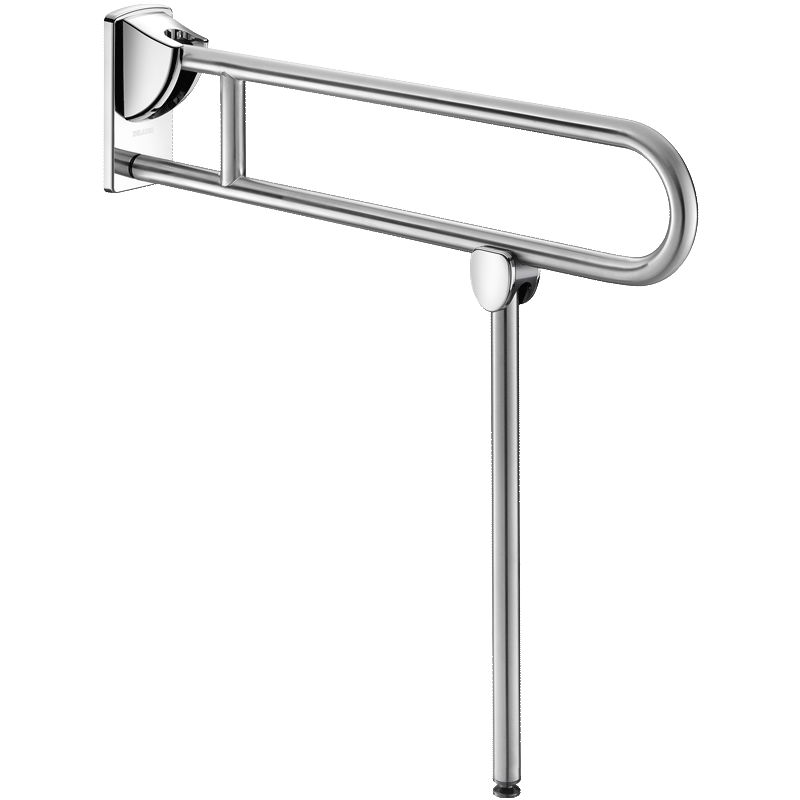

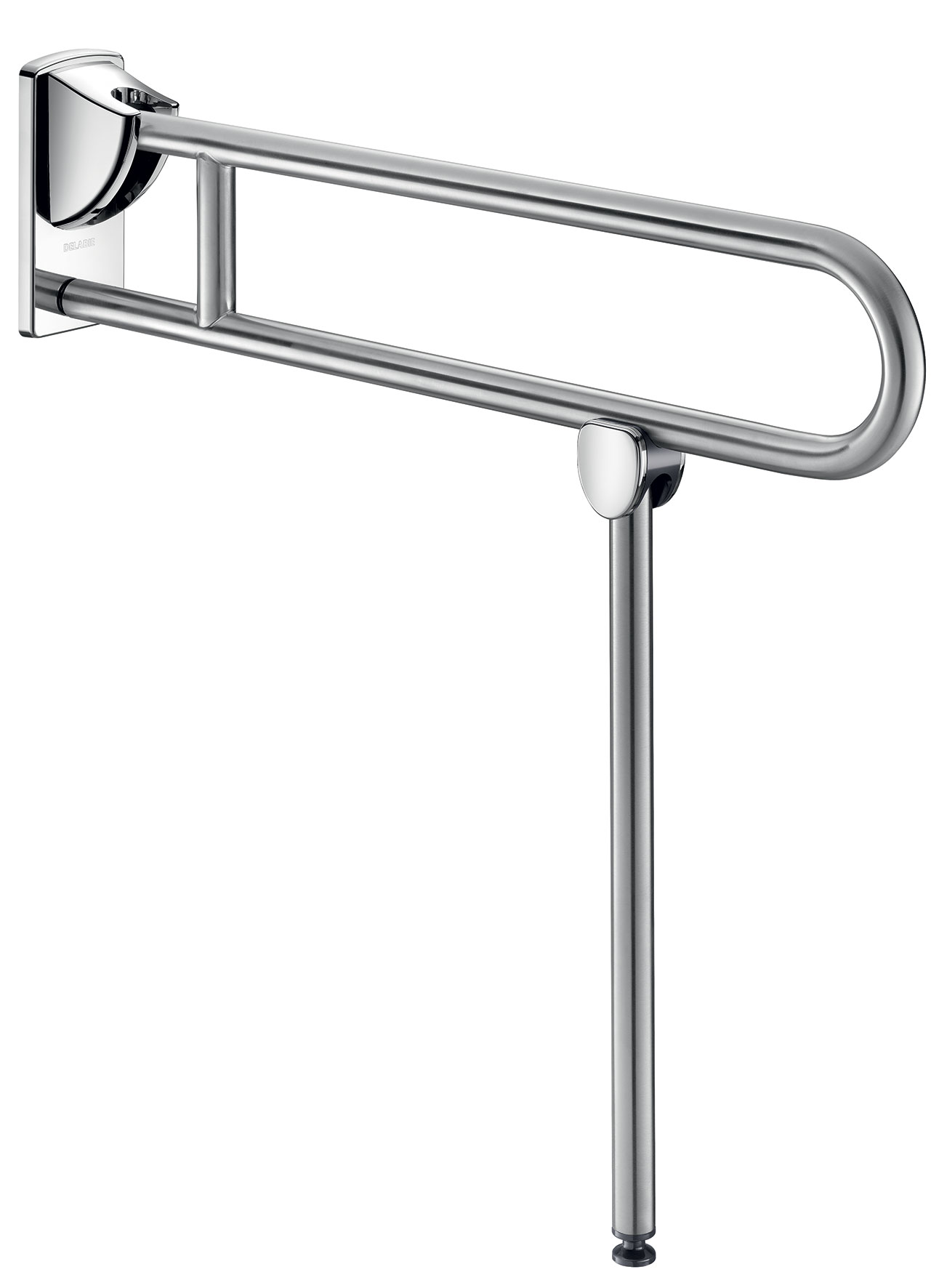

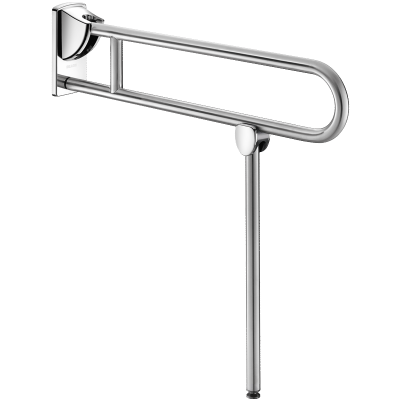

Drop-down grab bar Ø 32mm with leg, for people with reduced mobility.
Drop-down grab bar for WCs or showers.
Allows side access in the raised position.
In the lowered position use as a grab bar, for standing up and assisting movement.
With automatic folding leg: to be used as reinforcement when the wall fixing alone is insufficient.
Leg height can be adjusted from 760 - 780mm.
Retained in upright position. Slowed down descent.
Drop-down grab bar made from bacteriostatic 304 stainless steel.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Concealed fixing, secured to wall by a 4mm thick 304 stainless steel plate.
Supplied with stainless steel screws for concrete walls.
Dimensions: 850 x 800 x 105mm.
Tested to over 250kg. Maximum recommended user weight 170kg.
30-year warranty.
CE marked.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: reduces bacterial development

Sécurité

Tested to over 250kg

Nettoyage aisé

UltraSatin: Smooth surface, easy to clean

Confort - Ergonomie - Déclenchement souple

Diameter adapted for an optimal grip

Characteristics

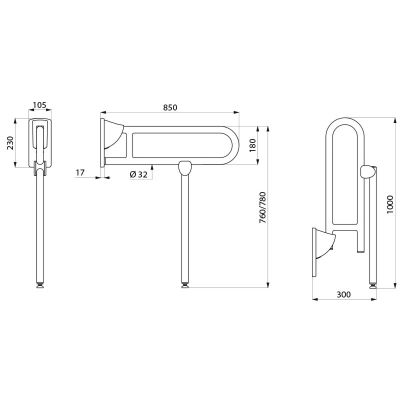

TECHNICAL CHARACTERISTICS

Stainless steel drop-down rail with leg, satin, L. 850mm

Ref. 510170S
Height 800mm, rail from 760 to 780mm
Length 850mm
Width 105mm
Diameter 32mm
Finish 304 stainless steel UltraSatin polished satin
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Stainless steel drop-down rail with leg, satin, L. 850mm

Ref. 510170S

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

510162P Bright polished stainless steel UltraPolish - 650mm
510162S Polished satin stainless steel UltraSatin - 650mm
510170P Bright polished stainless steel UltraPolish - 850mm
