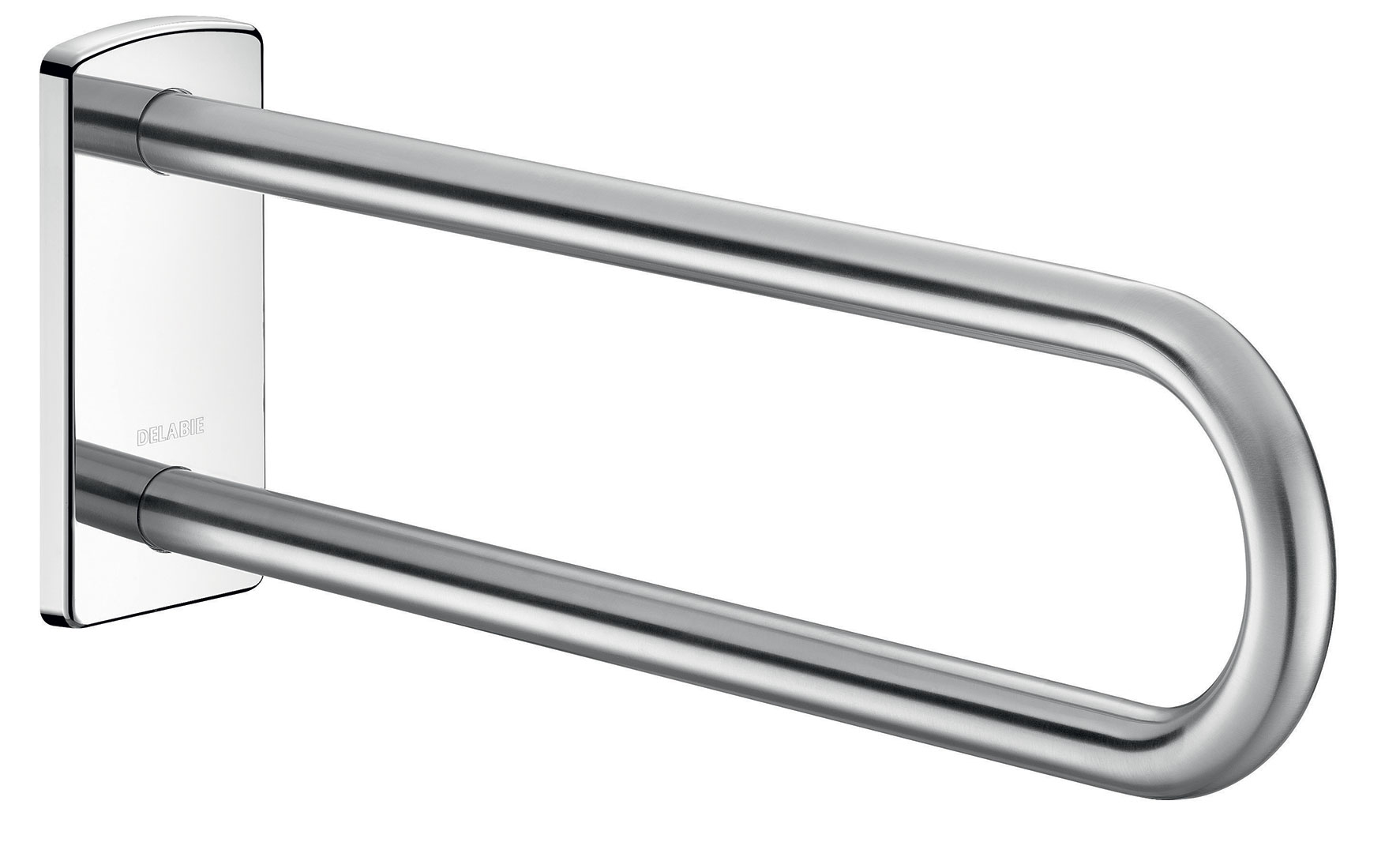

Fixed wall support bar Ø 32mm, L. 650mm
Ref. 510161SWall support bar for people with reduced mobility.
For use as a grab bar and a fixed support bar for WCs, showers or washbasins.
Generally installed parallel to a drop-down rail in a WC or on either side of a washbasin.
Recommended if the WC pan or shower seat is a long way from the side wall.
Dimensions: 650 x 230 x 105mm, Ø 32mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin stainless steel, uniform non-porous surface for easy maintenance and hygiene.
Fixings secured to wall by a 4mm thick 304 stainless steel fixing plate, concealed by cover plate.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
30-year warranty. CE marked.
For use as a grab bar and a fixed support bar for WCs, showers or washbasins.
Generally installed parallel to a drop-down rail in a WC or on either side of a washbasin.
Recommended if the WC pan or shower seat is a long way from the side wall.
Dimensions: 650 x 230 x 105mm, Ø 32mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin stainless steel, uniform non-porous surface for easy maintenance and hygiene.
Fixings secured to wall by a 4mm thick 304 stainless steel fixing plate, concealed by cover plate.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
30-year warranty. CE marked.
ADVANTAGES
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
304 stainless steel: reduces bacterial development
![Sécurité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/2/1/3/3127-12-eng-US/securite.png)
Tested to over 200kg
![Nettoyage aisé](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/2/0/3/3029-12-eng-US/nettoyage-aise.png)
UltraSatin: Smooth surface easy to clean
TECHNICAL CHARACTERISTICS
Fixed wall support bar Ø 32mm, L. 650mm
Ref. 510161SHeight | 230mm |
Length | 650mm |
Width | 105mm |
Diameter | Ø 32mm |
Finish | 304 stainless steel UltraSatin polished satin |
Certificates |
![]() ![]() |
Warranty | ![]() |
VARIANTS
510160P | Bright polished stainless steel UltraPolish - 650mm | ||
---|---|---|---|
510160S | Polished satin stainless steel UltraSatin - 650mm | ||
510161P | Bright polished stainless steel UltraPolish- Fixed model - 650mm | ||
510164P | Bright polished stainless steel UltraPolish - 850mm | ||
510164S | Polished satin stainless steel UltraSatin - 850mm |
