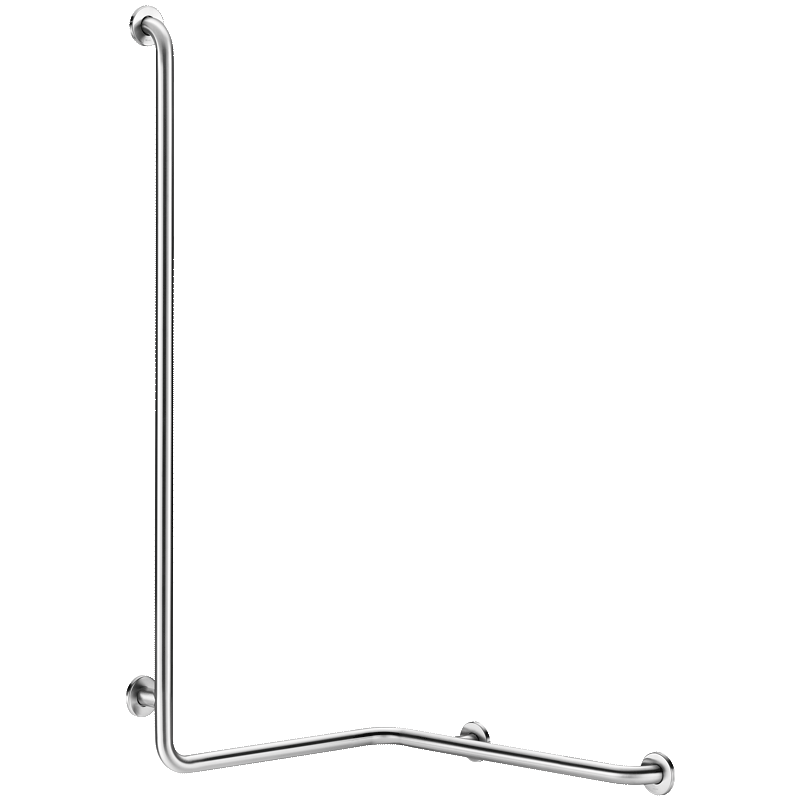

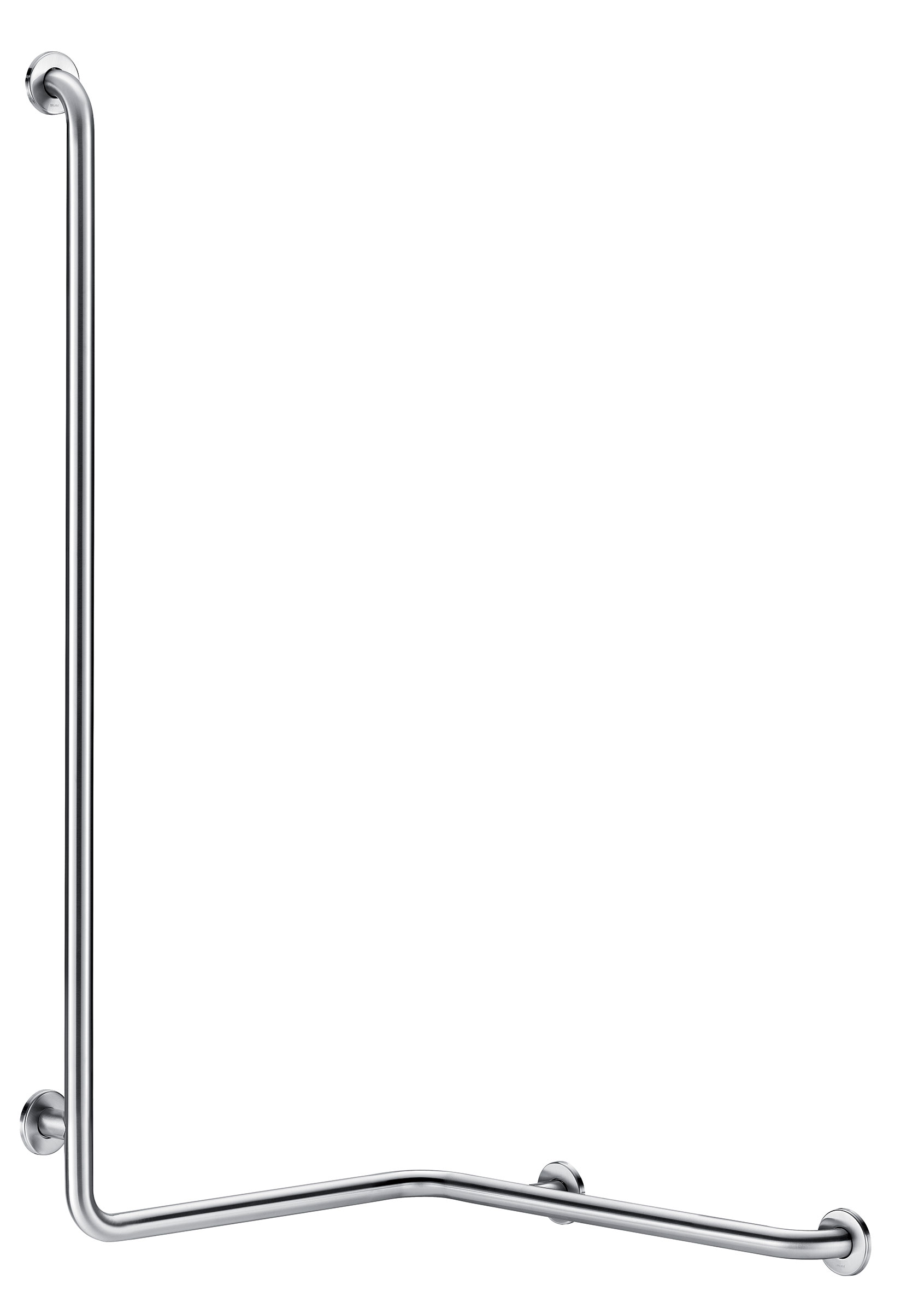

Right angled, shower grab bar (right model) with vertical bar, Ø 32mm
Ref. 5100DS
UltraSatin polished satin stainless steel, right model
UltraSatin polished satin stainless steel, right model
DESCRIPTION
Right angled, shower grab bar (right model) with vertical bar, Ø 32mm
Ref. 5100DSAngled, two-wall grab bar with vertical bar for people with reduced mobility, Ø 32mm. Right model.
Can be used as a support rail and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Can be used as a shower rail by adding a sliding shower head holder and/or soap dish.
Dimensions: 1,265 x 560 x 660mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit”).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Fixings concealed by a 3-hole cover plate, 304 stainless steel, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
30-year warranty. CE marked.
Can be used as a support rail and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Can be used as a shower rail by adding a sliding shower head holder and/or soap dish.
Dimensions: 1,265 x 560 x 660mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit”).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Fixings concealed by a 3-hole cover plate, 304 stainless steel, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
30-year warranty. CE marked.
ADVANTAGES
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
304 stainless steel: reduces bacterial development
![Sécurité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/2/1/3/3127-12-eng-US/securite.png)
Tested to over 200kg
![Faible espacement au mur - Encombrement limité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/8/9/2/2987-12-eng-US/encombrement-limite.png)
40mm gap between bar and wall: minimal space
![Nettoyage aisé](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/2/0/3/3029-12-eng-US/nettoyage-aise.png)
UltraSatin: smooth surface easy to clean
TECHNICAL CHARACTERISTICS
Right angled, shower grab bar (right model) with vertical bar, Ø 32mm

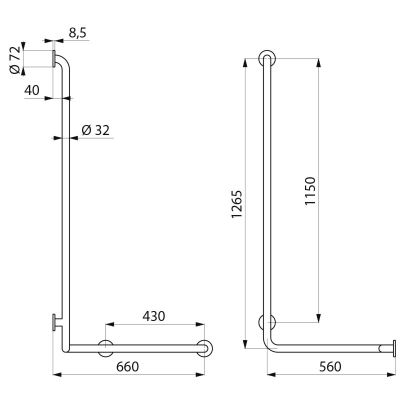

Ref. 5100DSHeight | 1,265mm |
Length | 660mm |
Width | 560mm |
Diameter | Ø 32mm |
Width to the wall | 40mm |
Finish | 304 stainless steel UltraSatin polished satin |
Certificates |
![]() ![]() |
Warranty | ![]() |
VARIANTS
5100DP2 | UltraPolish polished stainless steel - On the right | ||
---|---|---|---|
5100GP2 | UltraPolish polished stainless steel - On the left | ||
5100GS | UltraSatin stainless steel satin - On the left |
