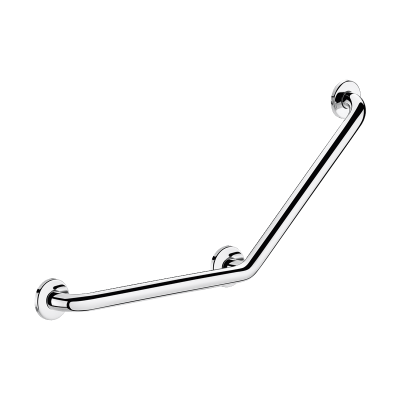

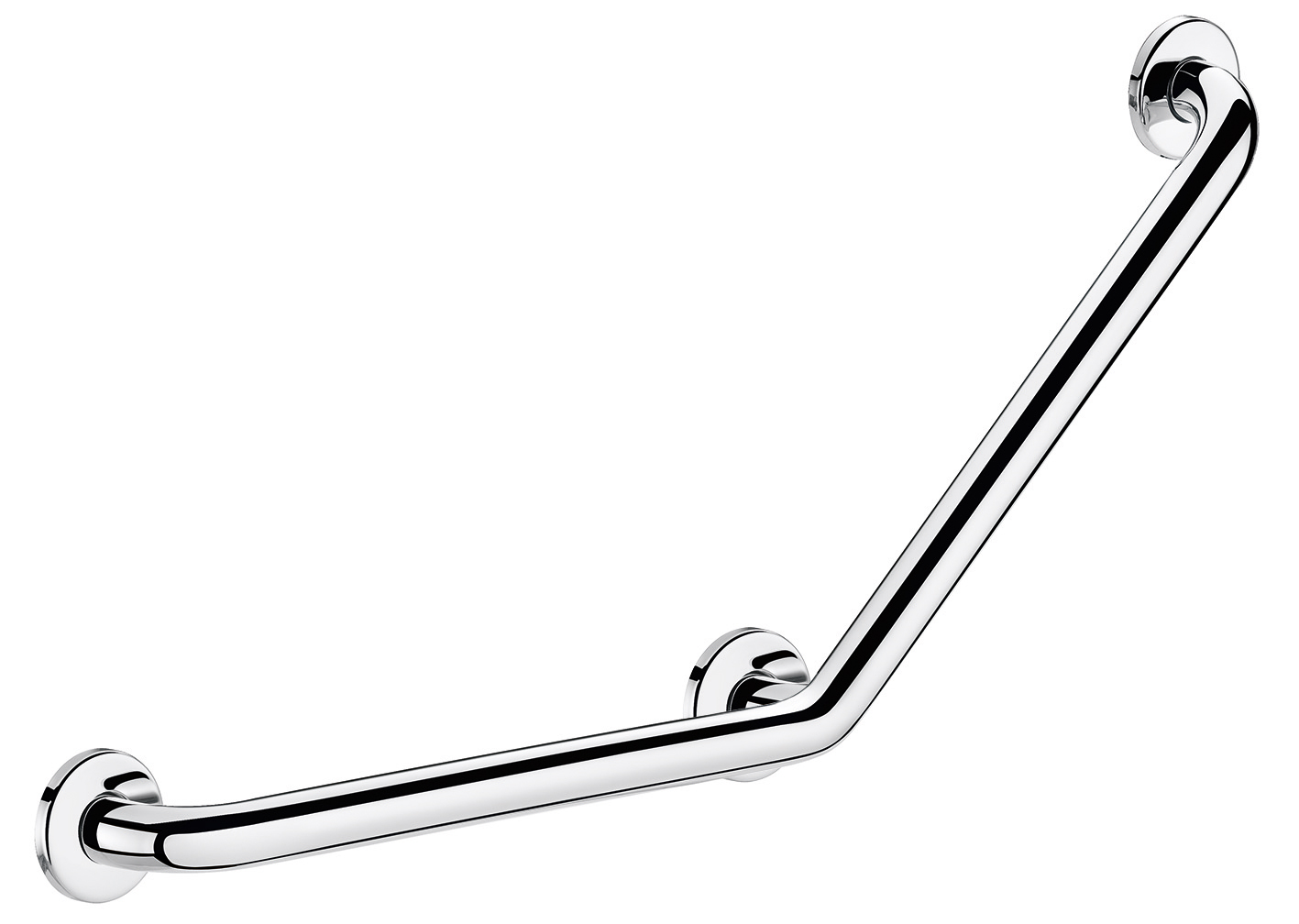

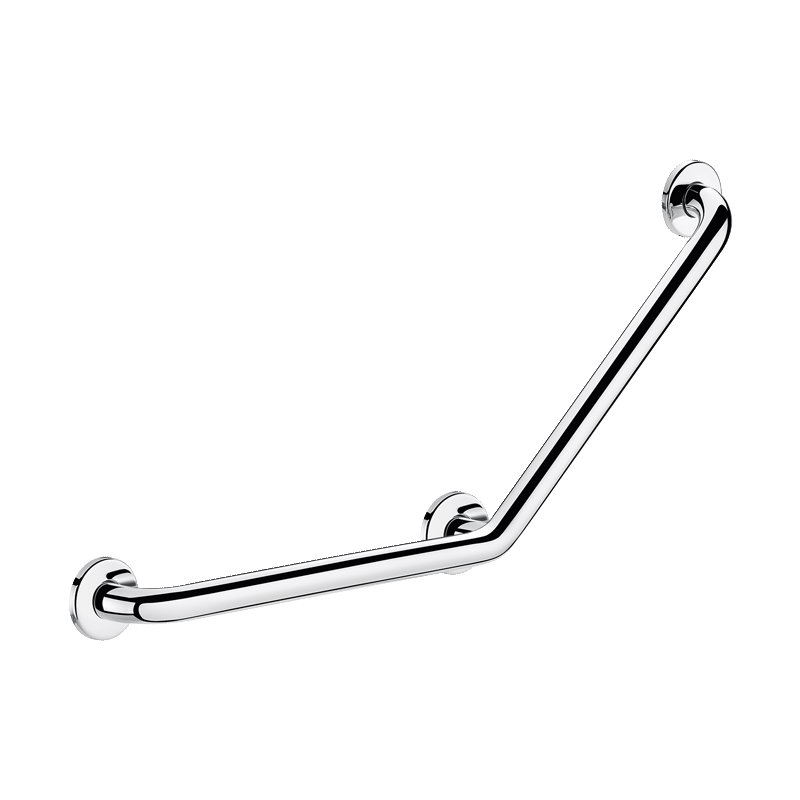

Angled grab bar 135°, Ø 25mm, 400 x 400mm
Ref. 5087P
UltraPolish bright polished stainless steel, 3 fixing points
UltraPolish bright polished stainless steel, 3 fixing points
DESCRIPTION
Angled grab bar 135°, Ø 25mm, 400 x 400mm
Ref. 5087PAngled grab bar 135° for people with reduced mobility, Ø 25mm.
For use as a handrail (horizontal part) or as a grab bar (135° part) for WCs, showers or baths.
Universal for either left or right side.

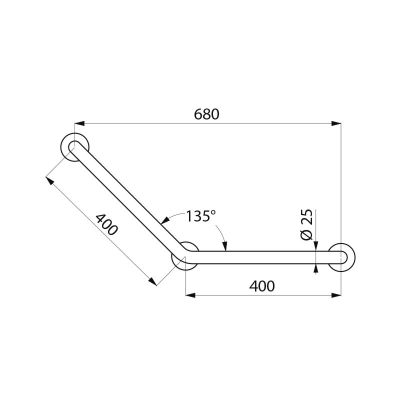

Dimensions: 400 x 400mm.
Bacteriostatic 304 stainless steel tube.
UltraPolish bright polished stainless steel, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).
40mm gap between the grab bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings, secured to wall on a 3-hole, 304 stainless steel plate, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Maximum recommended user weight: 115kg.
30-year warranty. CE marked.
For use as a handrail (horizontal part) or as a grab bar (135° part) for WCs, showers or baths.
Universal for either left or right side.
Dimensions: 400 x 400mm.
Bacteriostatic 304 stainless steel tube.
UltraPolish bright polished stainless steel, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).
40mm gap between the grab bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings, secured to wall on a 3-hole, 304 stainless steel plate, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Maximum recommended user weight: 115kg.
30-year warranty. CE marked.
ADVANTAGES
304 stainless steel: reduces bacterial development
For user weights up to 115kg
40mm gap between bar and wall: minimal space
UltraPolishbasin: smooth surface easy to clean
TECHNICAL CHARACTERISTICS
Angled grab bar 135°, Ø 25mm, 400 x 400mm
Ref. 5087PHeight | 400mm |
Length | 400mm |
Diameter | Ø 25mm |
Width to the wall | 40mm |
Finish | 304 stainless steel UltraPolish bright polished |
Certificates | |
Warranty |
VARIANTS
5082P | Bright polished stainless steel UltraPolish - Ø 32, 400 x 400mm | ||
---|---|---|---|
5082S | Polished satin stainless steel UltraSatin -Ø 32, 400 x 400mm | ||
5082W | White powder-coated stainless steel - Ø 32, 400 x 400mm |
VARIANTS
5082P | Bright polished stainless steel UltraPolish - Ø 32, 400 x 400mm | ||
---|---|---|---|
5082S | Polished satin stainless steel UltraSatin -Ø 32, 400 x 400mm | ||
5082W | White powder-coated stainless steel - Ø 32, 400 x 400mm |
