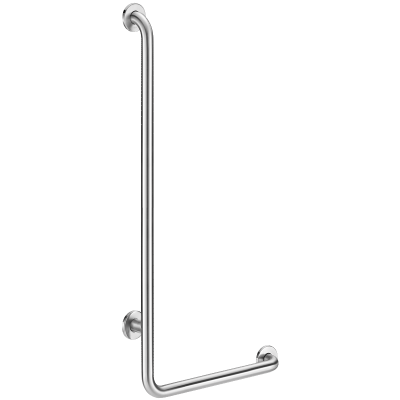

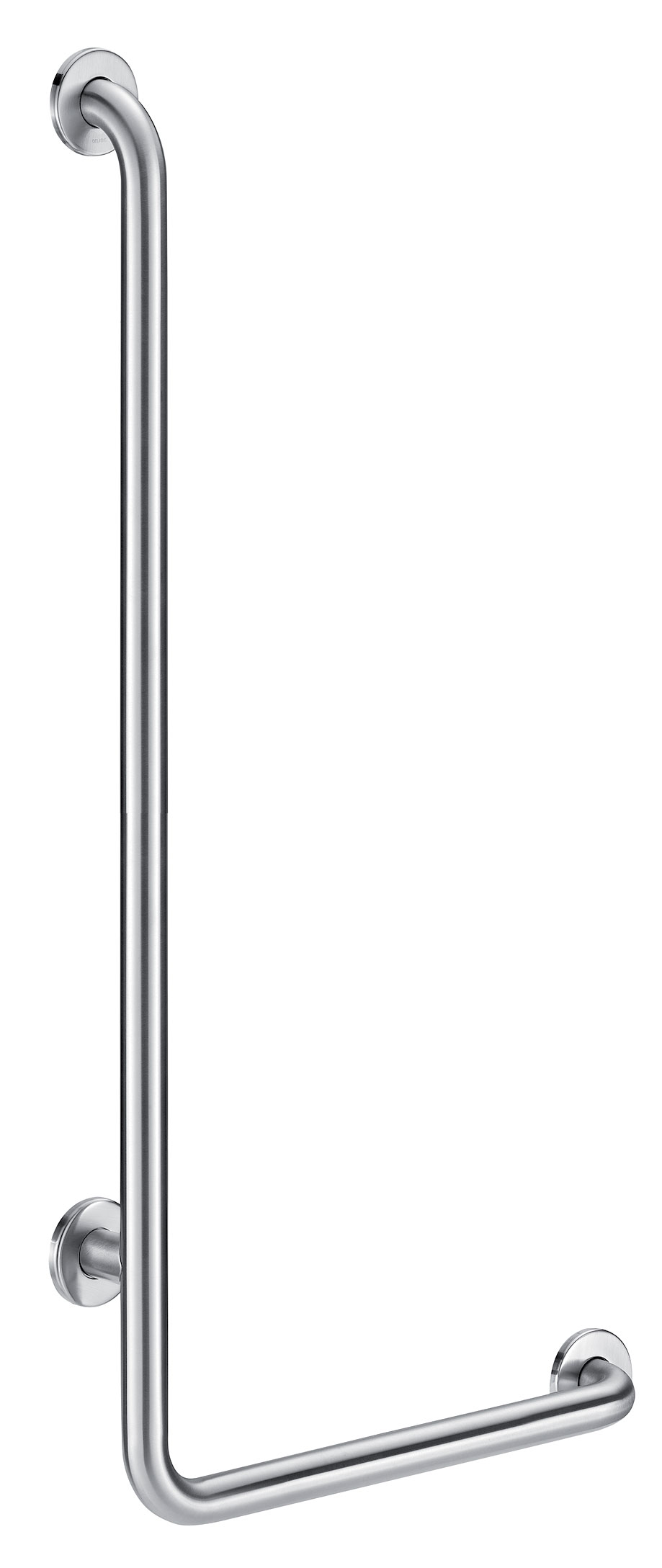

L-shaped stainless steel shower grab bar, satin, H. 1,150mm

Ref. 5071DS
UltraSatin polished satin stainless steel, right model
L-shaped stainless steel shower grab bar, satin, H. 1,150mm

Presentation

DESCRIPTION

L-shaped stainless steel shower grab bar, satin, H. 1,150mm

Ref. 5071DS
L-shaped grab bar Ø 32mm, for people with reduced mobility, right model.
Helps the user stand and secures movement in the bath or shower.
Can be used as a shower rail by adding a shower head holder and/or soap dish.

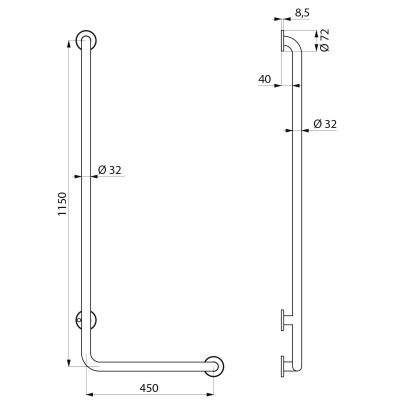

Dimensions: 1,150 x 450mm.
Tube thickness: 1.5mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin polished satin finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit”).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Fixings concealed by a 3-hole cover plate, 304 stainless steel, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
Bar comes with 30-year warranty. CE marked.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: reduces bacterial development

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: minimal space

Nettoyage aisé

UltraSatin: smooth surface is easy to clean

Characteristics

TECHNICAL CHARACTERISTICS

L-shaped stainless steel shower grab bar, satin, H. 1,150mm

Ref. 5071DS
Height 1,150mm
Length 450mm
Width to the wall 40mm
Finish 304 stainless steel UltraSatin polished satin
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

L-shaped stainless steel shower grab bar, satin, H. 1,150mm

Ref. 5071DS

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

5070GP2 Bright polished stainless steel UltraPolish - On the left, H.750mm
5070DP2 Bright polished stainless steel UltraPolish - On the right, H.750mm
5070GS Polished satin stainless steel UltraSatin - On the left, H.750mm
5070DS Polished satin stainless steel UltraSatin - On the right, H.750mm
5071GP2 Bright polished stainless steel UltraPolish - On the left, H.1,150mm
5071DP2 Bright polished stainless steel UltraPolish - On the right, H.1,150mm
5071GS Polished satin stainless steel UltraSatin - On the left, H.1,150mm
