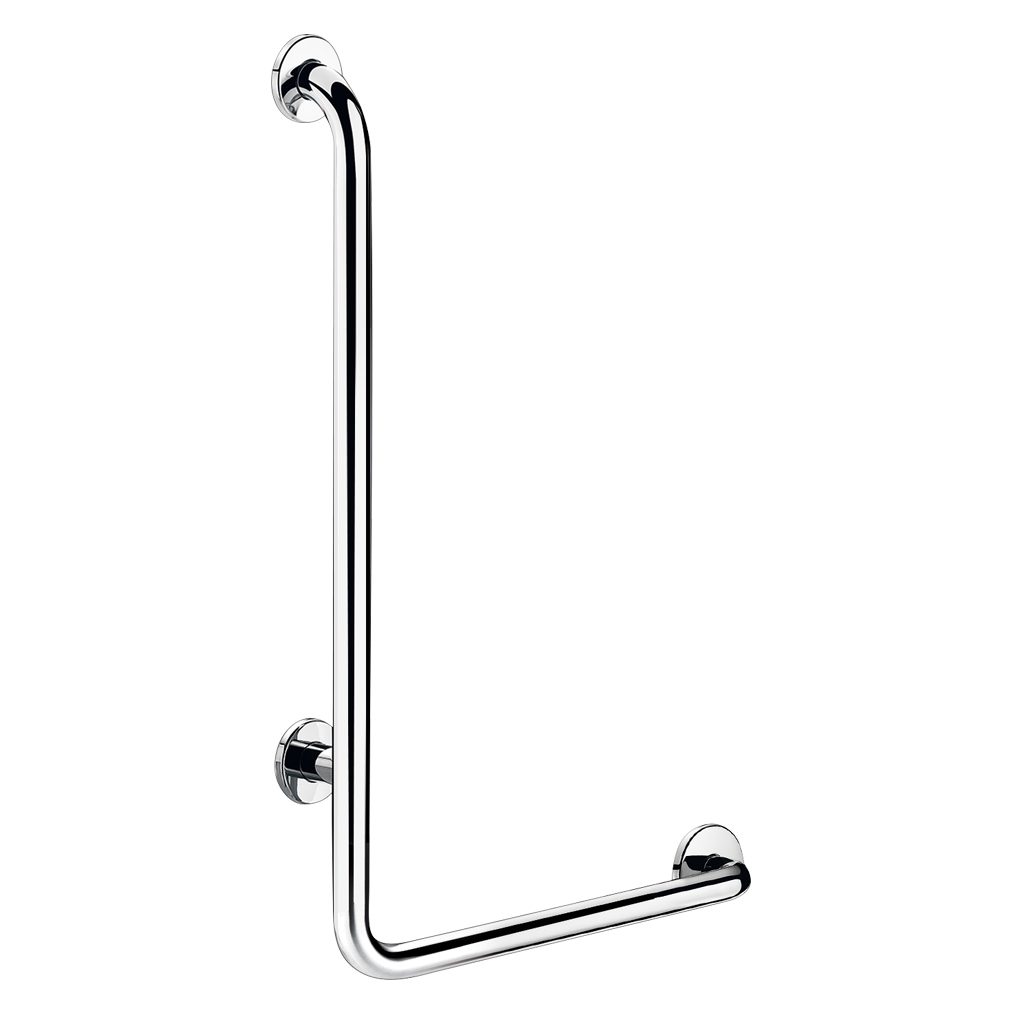

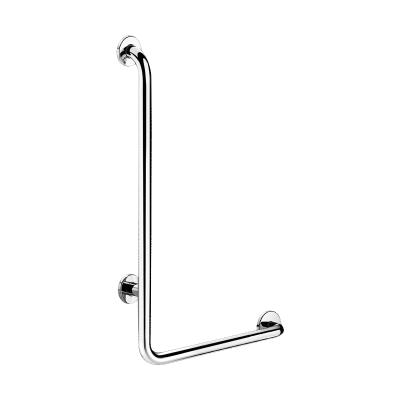

L-shaped stainless steel grab bar, bright, H. 750mm

Ref. 5070DP2
UltraPolish bright polished stainless steel, right model
L-shaped stainless steel grab bar, bright, H. 750mm

Presentation

DESCRIPTION

L-shaped stainless steel grab bar, bright, H. 750mm

Ref. 5070DP2
L-shaped grab bar Ø 32mm, for PRM, right model.
Helps the user stand and secures movement in the bath or shower.

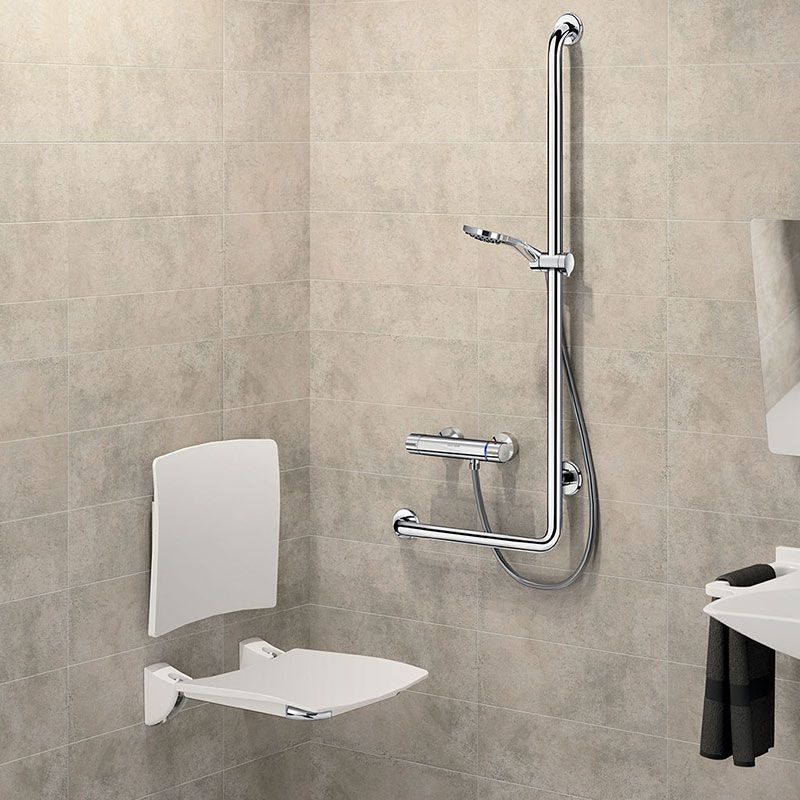

Can be used as a shower rail by adding a shower head holder and/or soap dish.
Dimensions: 750 x 450mm.
Tube thickness: 1.5mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraPolish bright polished finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit”).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Fixings concealed by a 3-hole cover plate, 304 stainless steel, Ø 72mm.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
Bar comes with 30-year warranty. CE marked.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: reduces bacterial development

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: minimal space

Nettoyage aisé

UltraPolish: smooth surface is easy to clean

Characteristics

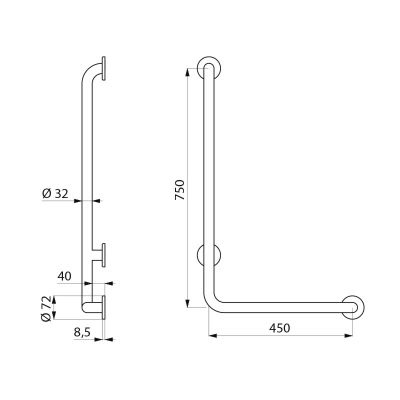

TECHNICAL CHARACTERISTICS

L-shaped stainless steel grab bar, bright, H. 750mm

Ref. 5070DP2
Height 750mm
Length 450mm
Diameter Ø 32mm
Width to the wall 40mm
Finish 304 stainless steel UltraPolish bright polished
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

L-shaped stainless steel grab bar, bright, H. 750mm

Ref. 5070DP2

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

5070GP2 Bright polished stainless steel UltraPolish - On the left, H.750mm
5070GS Polished satin stainless steel UltraSatin - On the left, H.750mm
5070DS Polished satin stainless steel UltraSatin - On the right, H.750mm
5071GP2 Bright polished stainless steel UltraPolish - On the left, H.1,150mm
5071DP2 Bright polished stainless steel UltraPolish - On the right, H.1,150mm
5071GS Polished satin stainless steel UltraSatin - On the left, H.1,150mm
5071DS Polished satin stainless steel UltraSatin - On the right, H.1,150mm
