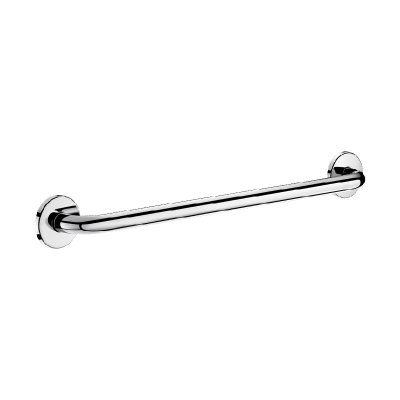

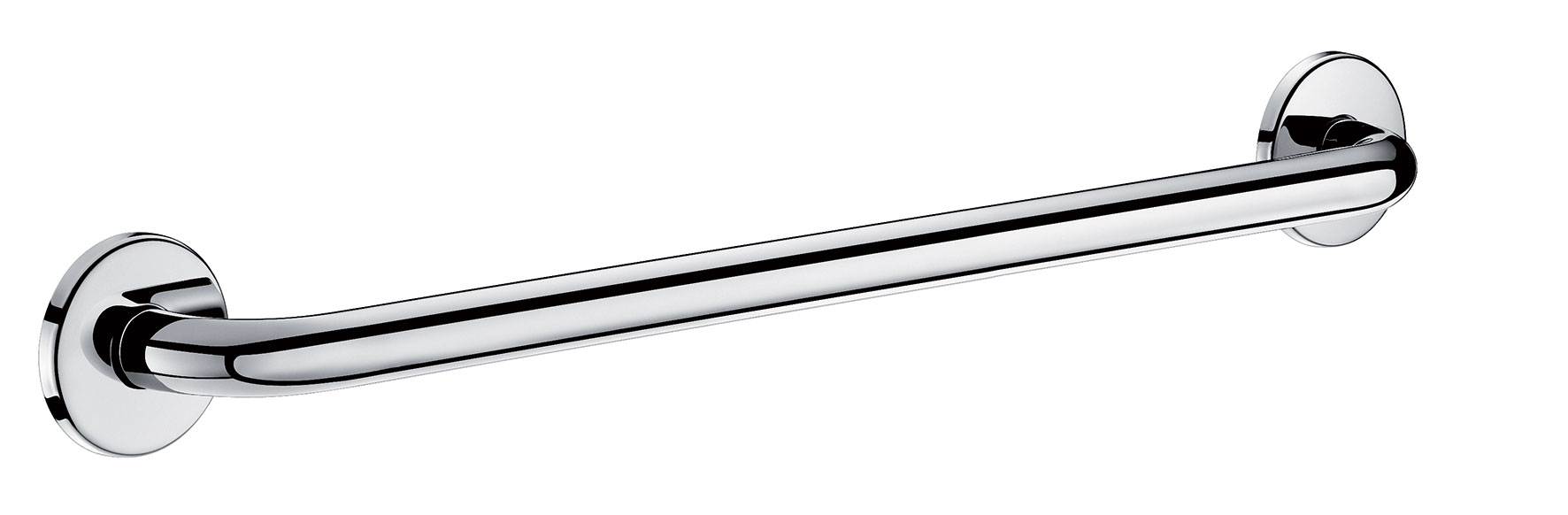

Straight stainless steel grab bar, bright, Ø 25mm, 500mm

Ref. 5057P2
UltraPolish bright polished stainless steel
Straight stainless steel grab bar, bright, Ø 25mm, 500mm

Presentation

DESCRIPTION

Straight stainless steel grab bar, bright, Ø 25mm, 500mm

Ref. 5057P2
Straight grab bar for people with reduced mobility.
Tube Ø 25mm, 500mm centres, 1.2mm thick.

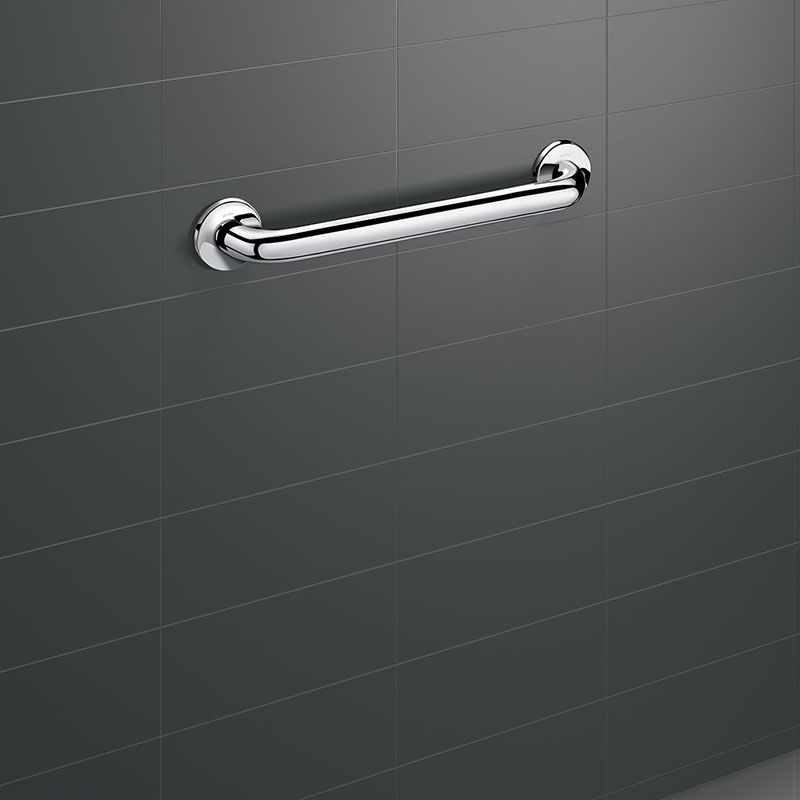

For use as a handrail and grab or support bar for WCs, showers or baths.
Grab bars for toilets made from bacteriostatic 304 stainless steel tube.
Stainless steel with UltraPolish bright polished finish, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit").
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings secured to wall by a 3-hole plate, 304 stainless steel, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 115kg.
30-year warranty. CE marked.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: reduces bacterial development

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: minimal space

Nettoyage aisé

UltraPolish: smooth surface easy to clean

Characteristics

TECHNICAL CHARACTERISTICS

Straight stainless steel grab bar, bright, Ø 25mm, 500mm

Ref. 5057P2

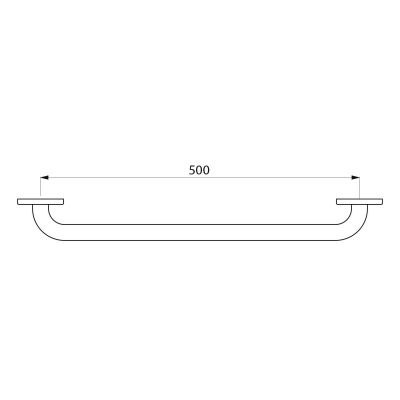

Length 500mm
Diameter Ø 25mm
Width to the wall 40mm
Finish 304 stainless steel UltraPolish bright polished
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Barre de maintien droite Inox brillant, 500 mm Ø 25

Ref. 5057P2

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

5050P2 Bright polished stainless steel UltraPolish - Ø 32, 300mm centres
50504P2 Bright polished stainless steel UltraPolish - Ø 32, 400mm centres
50505P2 Bright polished stainless steel UltraPolish - Ø 32, 500mm centres
50506P2 Bright polished stainless steel UltraPolish - Ø 32, 600mm centres
50509P2 Bright polished stainless steel UltraPolish - Ø 32, 900mm centres
5055P2 Bright polished stainless steel UltraPolish - Ø 25, 300mm centres
5058P2 Bright polished stainless steel UltraPolish - Ø 25, 600mm centres
5059P2 Bright polished stainless steel UltraPolish - Ø 25, 900mm centres

VARIANTS

5050P2 Bright polished stainless steel UltraPolish - Ø 32, 300mm centres
50504P2 Bright polished stainless steel UltraPolish - Ø 32, 400mm centres
50505P2 Bright polished stainless steel UltraPolish - Ø 32, 500mm centres
50506P2 Bright polished stainless steel UltraPolish - Ø 32, 600mm centres
50509P2 Bright polished stainless steel UltraPolish - Ø 32, 900mm centres
5055P2 Bright polished stainless steel UltraPolish - Ø 25, 300mm centres
5058P2 Bright polished stainless steel UltraPolish - Ø 25, 600mm centres
5059P2 Bright polished stainless steel UltraPolish - Ø 25, 900mm centres
