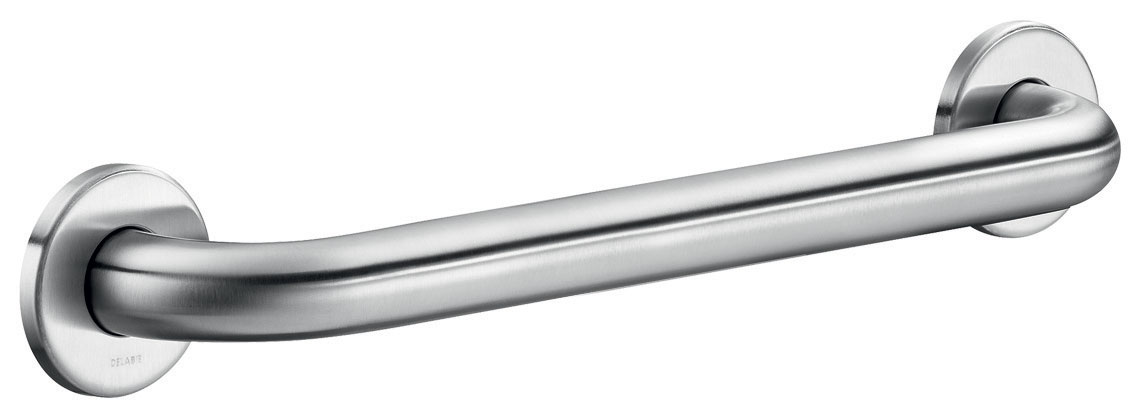

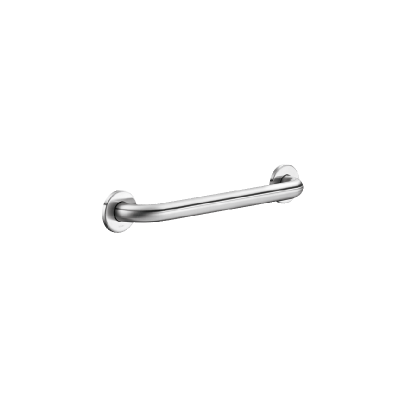

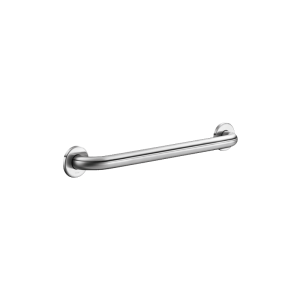

Straight stainless steel grab bar, satin, Ø 32mm, 300mm

Ref. 5050S
UltraSatin polished satin stainless steel
Straight stainless steel grab bar, satin, Ø 32mm, 300mm

Presentation

DESCRIPTION

Straight stainless steel grab bar, satin, Ø 32mm, 300mm

Ref. 5050S
Straight grab bar for people with reduced mobility.
Tube Ø 32mm, 300mm centres.
For use as a handrail and grab or support bar for WCs, showers or baths.
Straight grab bar made from bacteriostatic 304 stainless steel tube.
UltraSatin polished satin stainless steel, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit").
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Fixings concealed by a 3-hole cover plate, 304 stainless steel, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 250kg. Maximum recommended user weight: 170kg.
30-year warranty.
CE marked.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: reduces bacterial development

Sécurité

Tested to over 250kg

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: space saving

Nettoyage aisé

UltraSatin: smooth surface, easy to clean

Characteristics

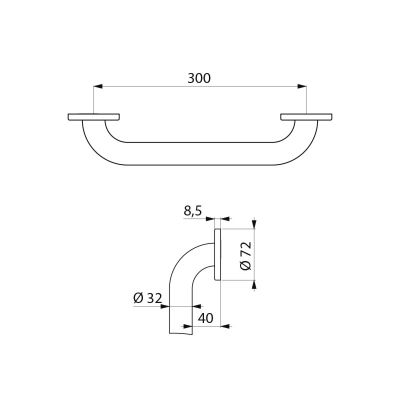

TECHNICAL CHARACTERISTICS

Straight stainless steel grab bar, satin, Ø 32mm, 300mm

Ref. 5050S
Length 300mm
Diameter 32mm
Width to the wall 40mm
Finish 304 stainless steel UltraSatin polished satin
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Barre de maintien droite Inox satiné, 300 mm Ø 32

Ref. 5050S

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

50504S Polished satin stainless steel UltraSatin - Ø 32, 400mm centres
50505S Polished satin stainless steel UltraSatin - Ø 32, 500mm centres
50506S Polished satin stainless steel UltraSatin - Ø 32, 600mm centres
50509S Polished satin stainless steel UltraSatin - Ø 32, 900mm centres
50510S Polished satin stainless steel UltraSatin - Ø 32, 1,050mm centres
