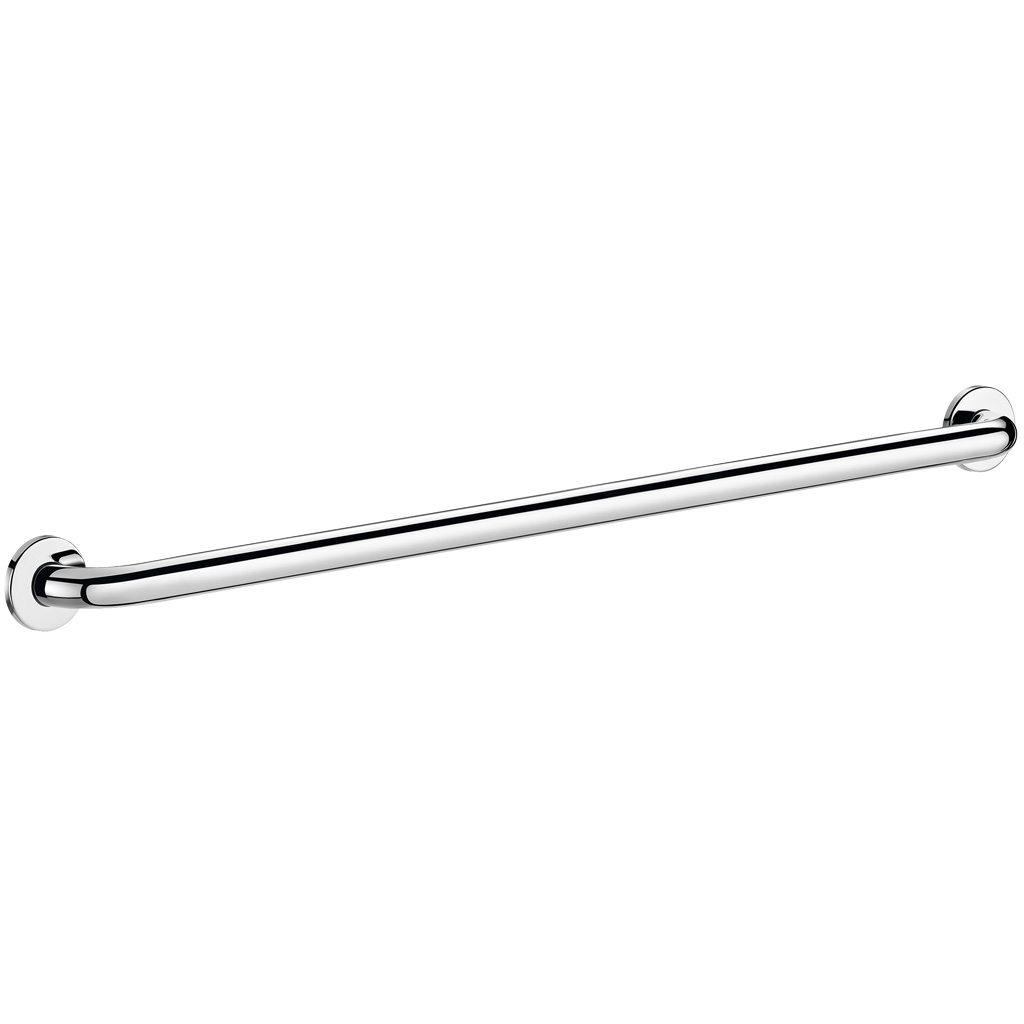

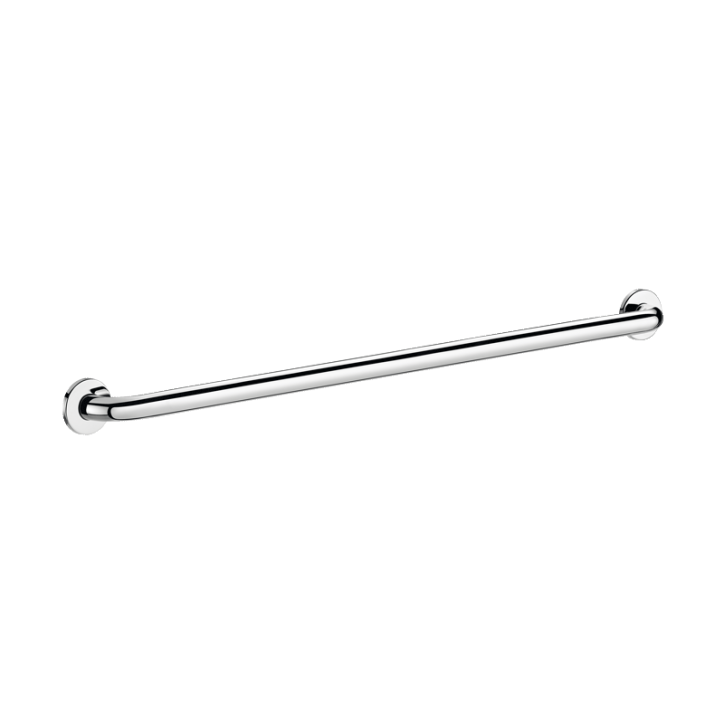

Straight stainless steel grab bar, bright, Ø 32mm, 900mm

Ref. 50509P2
UltraPolish bright polished stainless steel
Straight stainless steel grab bar, bright, Ø 32mm, 900mm

Presentation

DESCRIPTION

Straight stainless steel grab bar, bright, Ø 32mm, 900mm

Ref. 50509P2
Straight grab bar for people with reduced mobility.
Tube Ø 32mm, 900mm centres.
For use as a handrail and grab or support bar for WCs, showers or baths.
Straight grab bar made from bacteriostatic 304 stainless steel.
UltraPolish bright polished stainless steel, uniform non-porous surface for easy maintenance and hygiene.
Plate welded to the tube by invisible safety bead weld (process exclusive to "ArN-Securit").
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixing, secured to wall by a 3-hole, 304 stainless steel plate, Ø 72mm.
Fixing plates and cover plates in 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: reduces bacterial development

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: space saving

Nettoyage aisé

UltraPolish: smooth surface easy to clean

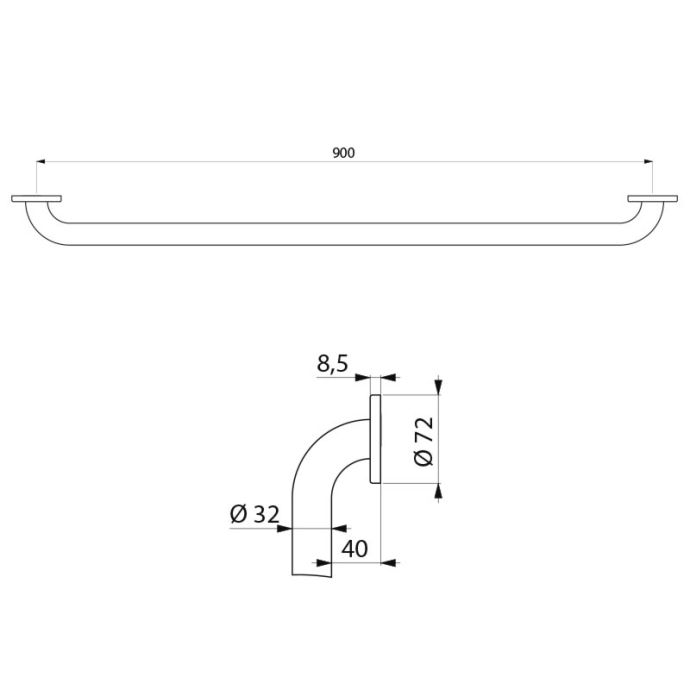

Characteristics

TECHNICAL CHARACTERISTICS

Straight stainless steel grab bar, bright, Ø 32mm, 900mm

Ref. 50509P2
Length 900mm
Diameter 32mm
Width to the wall 40mm
Finish 304 stainless steel UltraPolish bright polished
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Barre de maintien droite Inox brillant, 900 mm Ø 32

Ref. 50509P2

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

5050P2 Bright polished stainless steel UltraPolish - Ø 32, 300mm centres
50504P2 Bright polished stainless steel UltraPolish - Ø 32, 400mm centres
50505P2 Bright polished stainless steel UltraPolish - Ø 32, 500mm centres

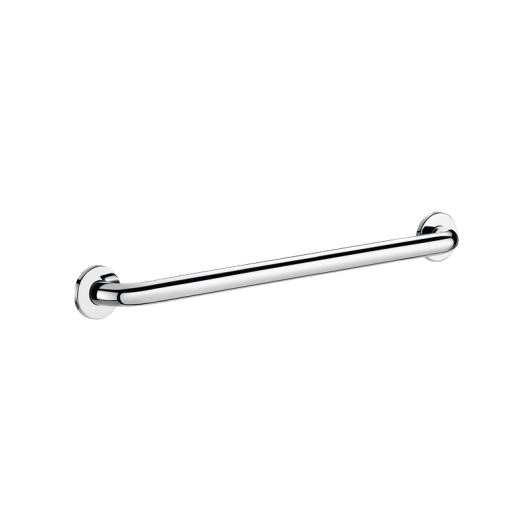

50506P2 Bright polished stainless steel UltraPolish - Ø 32, 600mm centres
5055P2 Bright polished stainless steel UltraPolish - Ø 25, 300mm centres
5057P2 Bright polished stainless steel UltraPolish - Ø 25, 500mm centres
5058P2 Bright polished stainless steel UltraPolish - Ø 25, 600mm centres
5059P2 Bright polished stainless steel UltraPolish - Ø 25, 900mm centres
