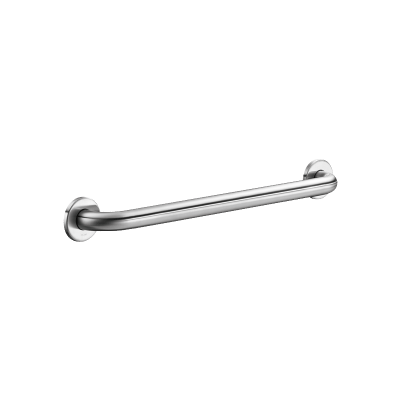

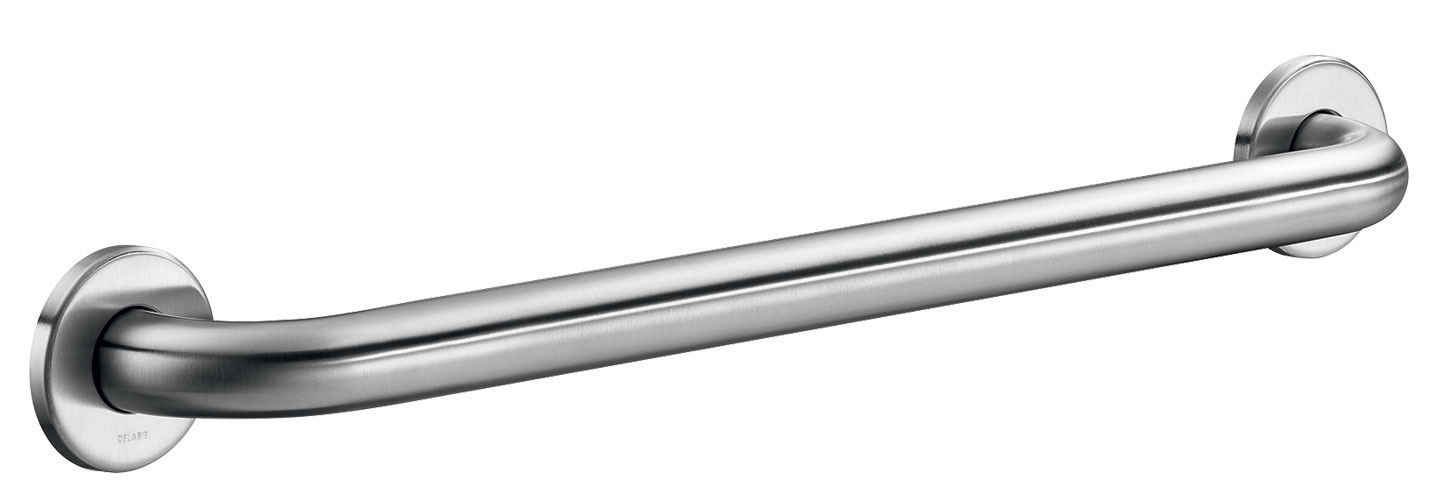

Straight stainless steel grab bar, satin, Ø 32mm, 500mm

Ref. 50505S
UltraSatin polished satin stainless steel
Straight stainless steel grab bar, satin, Ø 32mm, 500mm

Presentation

DESCRIPTION

Straight stainless steel grab bar, satin, Ø 32mm, 500mm

Ref. 50505S
Straight grab bar for people with reduced mobility.
Tube Ø 32mm, 500mm centres.
For use as a handrail and grab or support bar for WCs, showers or baths.
Can be used to hang a shower seat on (order separately).
Straight grab bar made from bacteriostatic 304 stainless steel tube.
Stainless steel with UltraSatin satin finish, non-porous uniform surface for easy maintenance and hygiene.
Plate welded to the tube by invisible bead weld (process exclusive to ArN-Securit).
40mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings secured by a 3-hole plate, 304 stainless steel, Ø 72mm.
Fixing plates and cover plates made from 304 stainless steel.
Supplied with stainless steel screws for concrete walls.
Tested to over 250kg. Maximum recommended user weight: 170kg.
30-year warranty. CE marked.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

304 stainless steel: reduces bacterial development

Sécurité

Tested to over 250kg

Faible espacement au mur - Encombrement limité

40mm gap between bar and wall: space saving

Nettoyage aisé

UltraSatin: smooth surface easy to clean

Characteristics

TECHNICAL CHARACTERISTICS

Straight stainless steel grab bar, satin, Ø 32mm, 500mm

Ref. 50505S

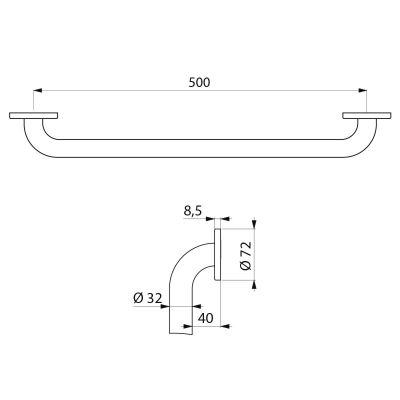

Length 500mm
Diameter 32mm
Width to the wall 40mm
Finish 304 stainless steel UltraSatin polished satin
Certificates Logo CE Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Barre de maintien droite Inox satiné, 500 mm Ø 32

Ref. 50505S

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

5050S Polished satin stainless steel UltraSatin - Ø 32, 300mm centres
50504S Polished satin stainless steel UltraSatin - Ø 32, 400mm centres
50506S Polished satin stainless steel UltraSatin - Ø 32, 600mm centres
50509S Polished satin stainless steel UltraSatin - Ø 32, 900mm centres
50510S Polished satin stainless steel UltraSatin - Ø 32, 1,050mm centres
