Be-Line® matte black angled grab bar 135° 220 x 220 mm

Ref. 511983BK
Matte black aluminium, 3 fixing points
Be-Line® matte black angled grab bar 135° 220 x 220 mm

Presentation

DESCRIPTION

Be-Line® matte black angled grab bar 135° 220 x 220 mm

Ref. 511983BK
Be-line® angled grab bar 135°, Ø 35mm, for people with reduced mobility.
For use as a handrail (horizontal part) or as a grab rail (135° part), for WCs, showers or baths.
Use as a universal grab bar for either left or right side.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated finish; provides a good visual contrast with light-coloured walls.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 220 x 220mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Grab bar for toilets with 30-year warranty. CE marked.

ADVANTAGES

Design

Innovative design suitable for all users

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic anti-rotation surface

Sécurité

Tested to over 200kg

Faible espacement au mur - Encombrement limité

38mm gap between bar and wall: space saving

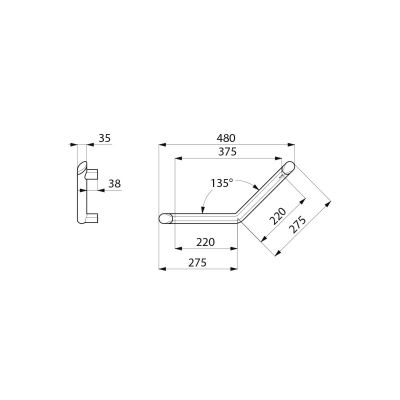

Characteristics

TECHNICAL CHARACTERISTICS

Be-Line® matte black angled grab bar 135° 220 x 220 mm

Ref. 511983BK
Height 220mm
Length 220mm
Diameter Ø 35mm
Width to the wall 38mm
Thickness 3mm
Finish Matte black powder-coated aluminium
Certificates Logo CE
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Be-Line® matte black angled grab bar 135° 220 x 220 mm

Ref. 511983BK

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Be-Line® matte black angled grab bar 135° 220 x 220 mm

Ref. 511983BK
1. 5119FIX
Mounting kit for Be-Line® grab bars

VARIANTS

511982C Metallised anthracite powder-coated aluminium - 400 x 400mm
511982BK Matte black powder-coated aluminium - 400 x 400mm
511982W Matte white powder-coated aluminium - 400 x 400mm
511983C Metallised anthracite powder-coated aluminium - 220 x 220mm
511983W Matte white powder-coated aluminium - 220 x 220mm
