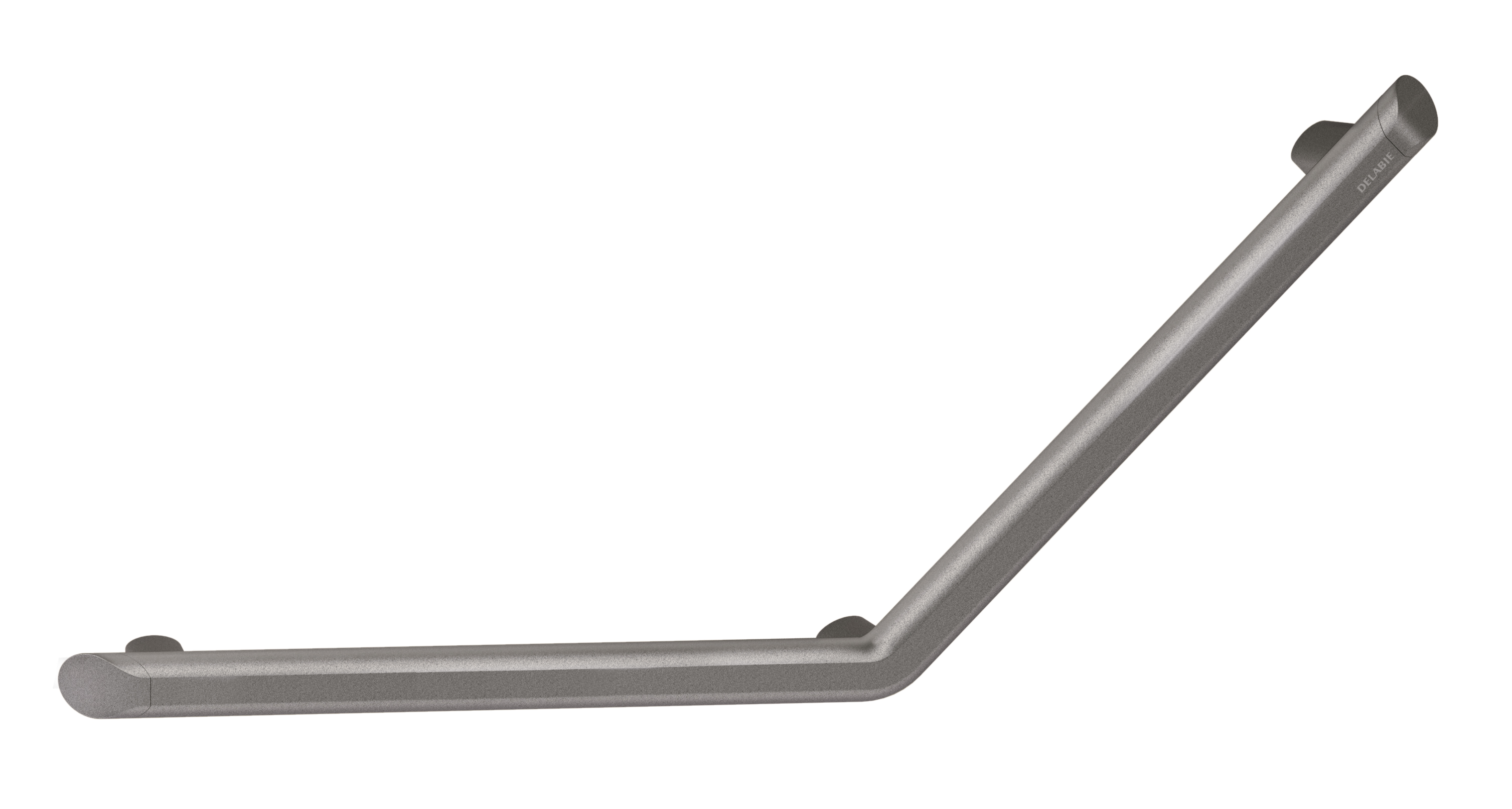

Be-line® anthracite angled grab bar 135°, 400 x 400mm
Ref. 511982C
Metallised anthracite powder-coated aluminium, 3 fixing points
Metallised anthracite powder-coated aluminium, 3 fixing points
DESCRIPTION
Be-line® anthracite angled grab bar 135°, 400 x 400mm
Ref. 511982CBe-line® angled grab bar 135°, Ø 35mm, for people with reduced mobility.
For use as a handrail (horizontal part) or as a grab rail (135° part), for WCs, showers or baths.
Use as a universal grab bar for either left or right side.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish; provides a good visual contrast with light-coloured walls.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 400 x 400mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Grab bars for toilets with 30-year warranty. CE marked.
For use as a handrail (horizontal part) or as a grab rail (135° part), for WCs, showers or baths.
Use as a universal grab bar for either left or right side.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish; provides a good visual contrast with light-coloured walls.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
3 fixing points prevent the hand from getting trapped and simplify installation.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 400 x 400mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Grab bars for toilets with 30-year warranty. CE marked.
ADVANTAGES
Innovative design suitable for all users
Comfort: ergonomic anti-rotation surface
Tested to over 200kg
38mm gap between bar and wall: space saving
TECHNICAL CHARACTERISTICS
Be-line® anthracite angled grab bar 135°, 400 x 400mm
Ref. 511982CHeight | 400mm |
Length | 400mm |
Diameter | Ø 35mm |
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Metallised anthracite powder-coated aluminium |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
Be-line® anthracite angled grab bar 135°, 400 x 400mm
Ref. 511982C1. | 5119FIX |
|
Mounting kit for Be-Line® grab bars |
VARIANTS
511982BK | Matte black powder-coated aluminium - 400 x 400mm | ||
---|---|---|---|
511982W | Matte white powder-coated aluminium - 400 x 400mm | ||
511983C | Metallised anthracite powder-coated aluminium - 220 x 220mm | ||
511983BK | Matte black powder-coated aluminium - 220 x 220mm | ||
511983W | Matte white powder-coated aluminium - 220 x 220mm |
VARIANTS
511982BK | Matte black powder-coated aluminium - 400 x 400mm | ||
---|---|---|---|
511982W | Matte white powder-coated aluminium - 400 x 400mm | ||
511983C | Metallised anthracite powder-coated aluminium - 220 x 220mm | ||
511983BK | Matte black powder-coated aluminium - 220 x 220mm | ||
511983W | Matte white powder-coated aluminium - 220 x 220mm |
