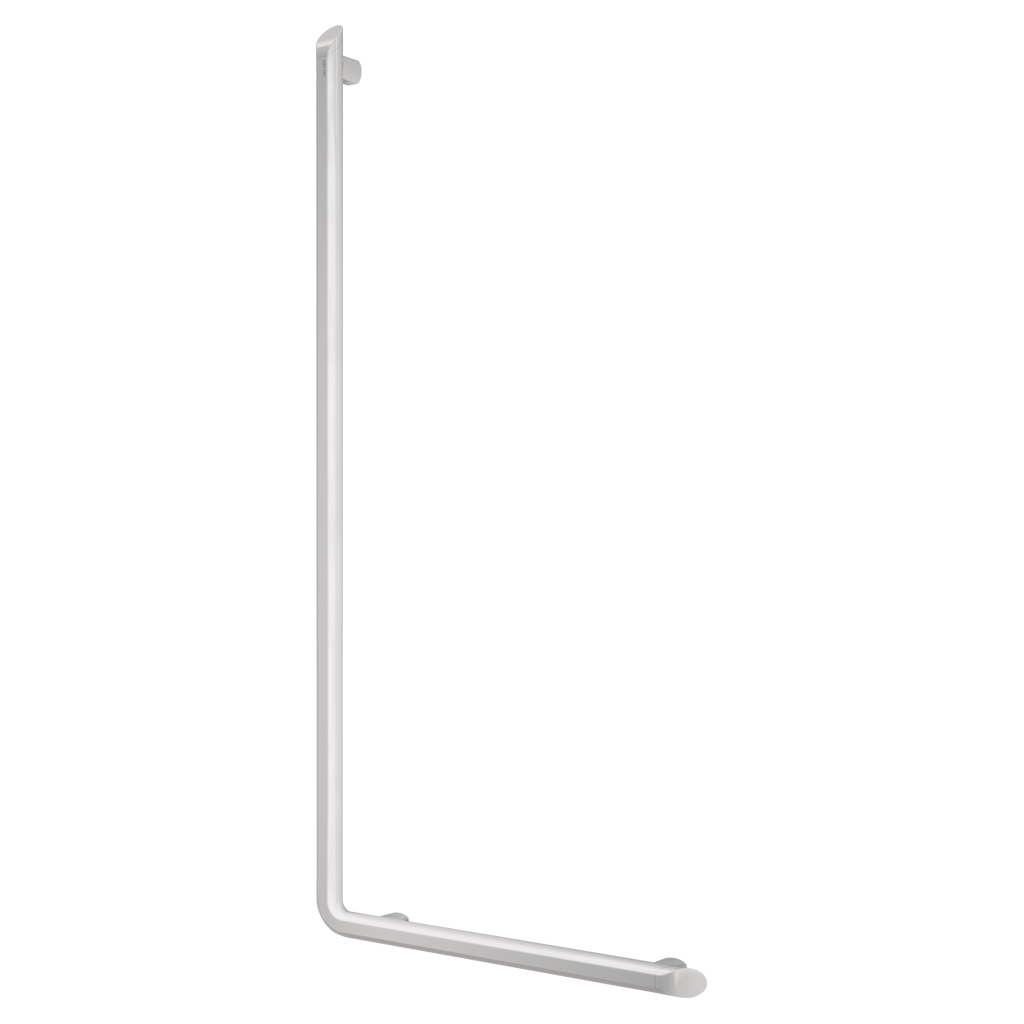

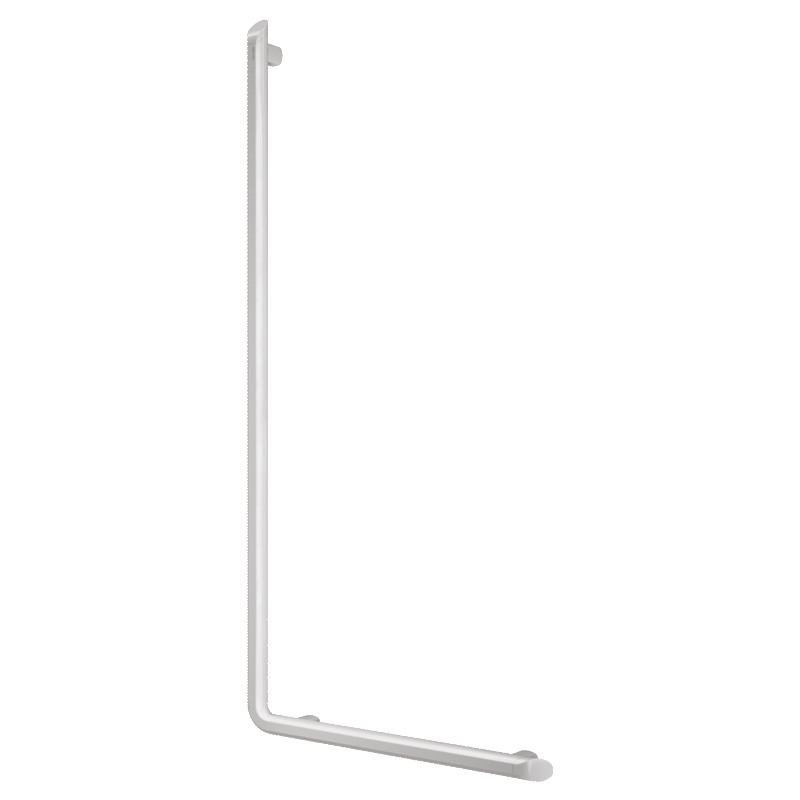

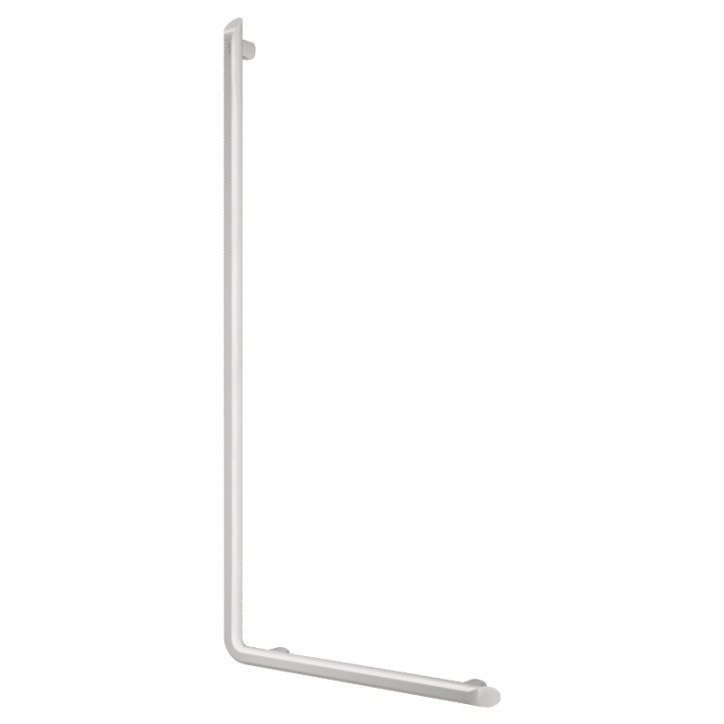

Be-line® L-shaped grab bar, matte white, H. 1,130mm
Ref. 511971W
Matte white powder-coated aluminium
Matte white powder-coated aluminium
DESCRIPTION
Be-line® L-shaped grab bar, matte white, H. 1,130mm
Ref. 511971WBe-line® L-shaped grab bar for showers or baths for people with reduced mobility.
Helps the user stand and move safely in the shower or bath.

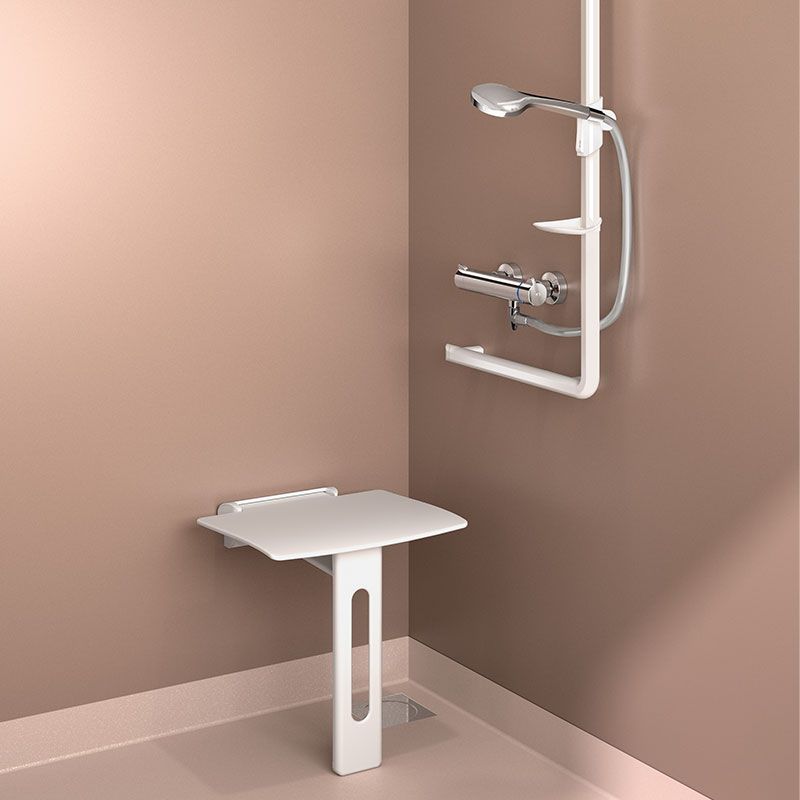

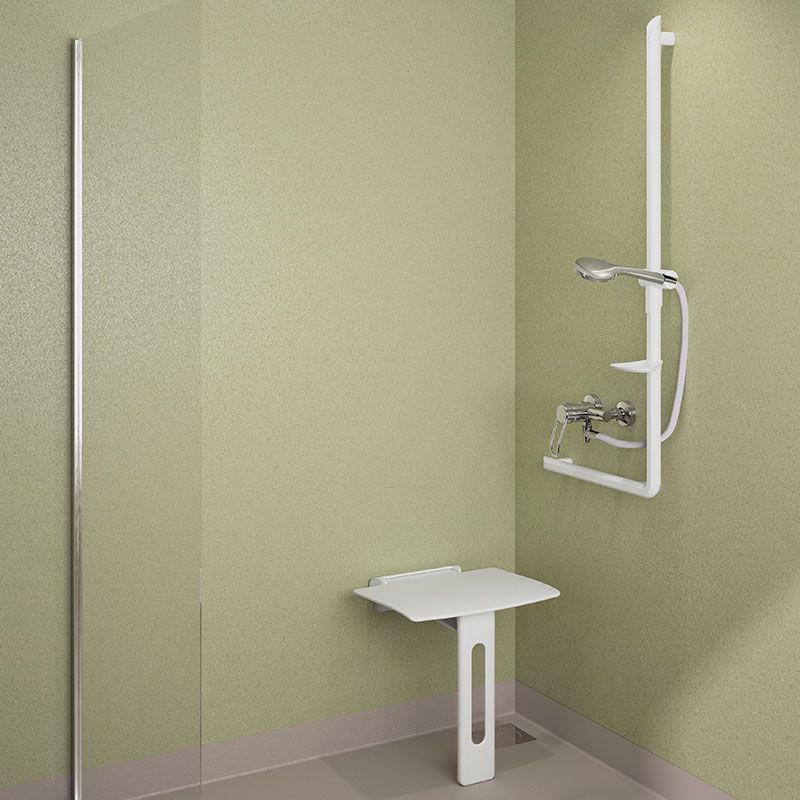

Use as a shower rail by adding a shower head holder and/or soap dish.
Can be installed with upright bar on the left or right.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium provides a good visual contrast with dark walls.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 1,130 x 450mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
Helps the user stand and move safely in the shower or bath.
Use as a shower rail by adding a shower head holder and/or soap dish.
Can be installed with upright bar on the left or right.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium provides a good visual contrast with dark walls.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 1,130 x 450mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
ADVANTAGES
![Design](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/4/9/2/2945-12-eng-US/design.png)
Innovative design suitable for all users
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Comfort: ergonomic anti-rotation surface
![Sécurité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/2/1/3/3127-12-eng-US/securite.png)
Tested to over 200kg
![Faible espacement au mur - Encombrement limité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/8/9/2/2987-12-eng-US/encombrement-limite.png)
38mm gap between bar and wall: space saving

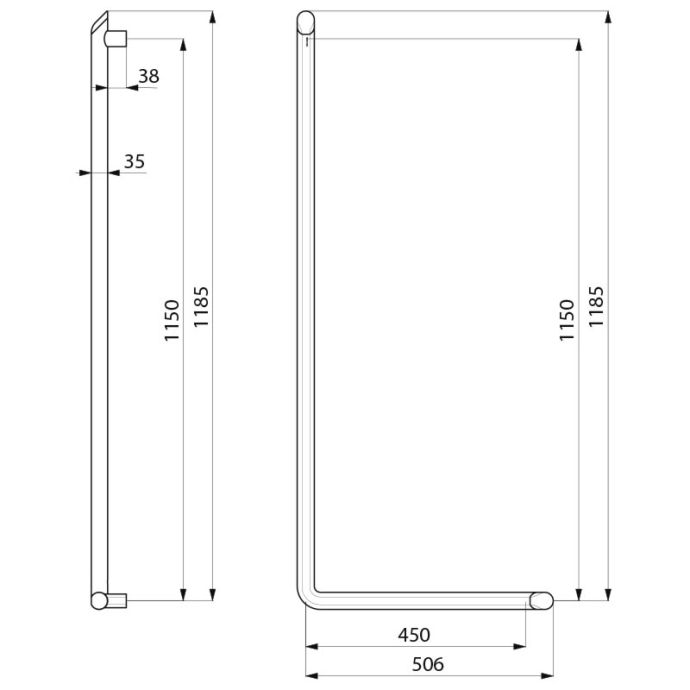

TECHNICAL CHARACTERISTICS
Be-line® L-shaped grab bar, matte white, H. 1,130mm
Ref. 511971WHeight | 1,130mm |
Length | 450mm |
Diameter | Ø 35mm |
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Matte white epoxy coated aluminium |
Certificates |
![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts

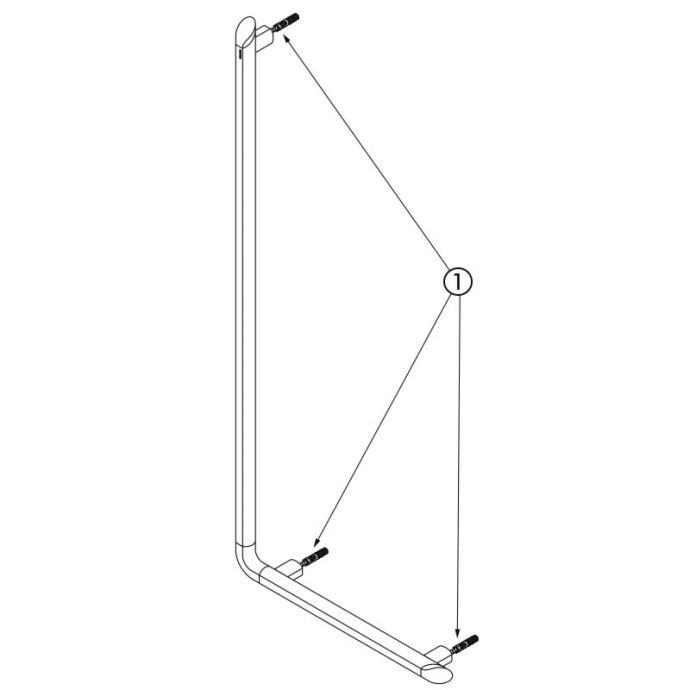

SPARE PARTS
Be-line® L-shaped grab bar, matte white, H. 1,130mm
Ref. 511971W![](https://www.delabie.com/var/site/storage/images/2/9/2/7/3137292-1-fre-FR/PD_511971W.jpg)
1. | 5119FIX |
|
Mounting kit for Be-Line® grab bars |
VARIANTS
511970C | Metallised anthracite powder-coated aluminium - H.750mm | ||
---|---|---|---|
511971C | Metallised anthracite powder-coated aluminium - H.1,130mm | ||
511970BK | Matte black powder-coated aluminium - H. 750mm | ||
511971BK | Matte black powder-coated aluminium - H. 1,130mm | ||
511970W | Matte white powder-coated aluminium - H.750mm |
