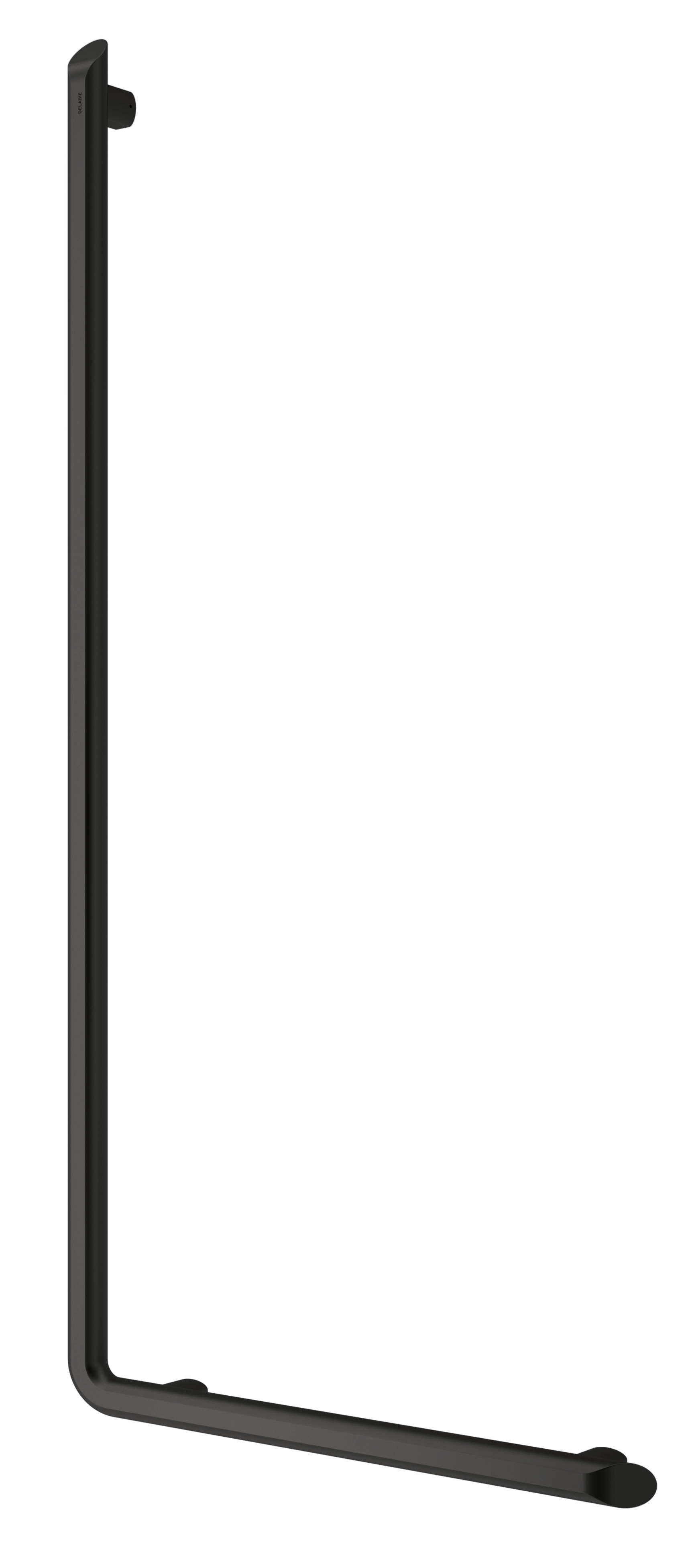

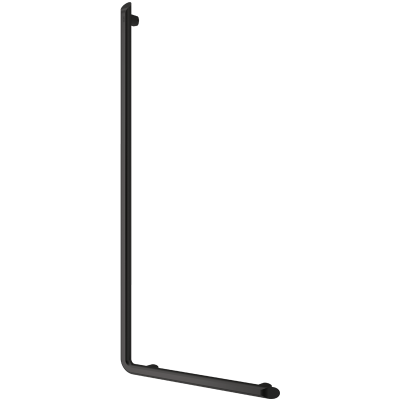

Be-line® L-shaped grab bar, matte black, H. 1,130mm
Ref. 511971BK
Matte black powder-coated aluminium
Matte black powder-coated aluminium
DESCRIPTION
Be-line® L-shaped grab bar, matte black, H. 1,130mm
Ref. 511971BKBe-line® L-shaped grab bar for showers or baths for people with reduced mobility.
Helps the user stand and move safely in the shower or bath.
Use as a shower rail by adding a shower head holder and/or soap dish.
Can be installed with upright bar on the left or right.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated aluminium provides a good visual contrast with light-coloured walls.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 1,130 x 450mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
Helps the user stand and move safely in the shower or bath.
Use as a shower rail by adding a shower head holder and/or soap dish.
Can be installed with upright bar on the left or right.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated aluminium provides a good visual contrast with light-coloured walls.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 1,130 x 450mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
30-year warranty. CE marked.
ADVANTAGES
Innovative design suitable for all users
Comfort: ergonomic anti-rotation surface
Tested to over 200kg
38mm gap between bar and wall: space saving

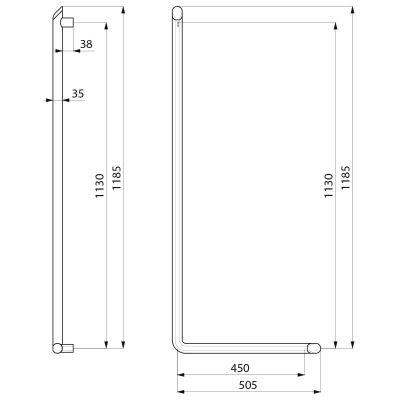

TECHNICAL CHARACTERISTICS
Be-line® L-shaped grab bar, matte black, H. 1,130mm
Ref. 511971BKHeight | 1130mm |
Length | 450mm |
Diameter | Ø 35mm |
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Matte black powder-coated aluminium |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
Be-line® L-shaped grab bar, matte black, H. 1,130mm
Ref. 511971BK1. | 5119FIX |
|
Mounting kit for Be-Line® grab bars |
VARIANTS
511970C | Metallised anthracite powder-coated aluminium - H.750mm | ||
---|---|---|---|
511971C | Metallised anthracite powder-coated aluminium - H.1,130mm | ||
511970BK | Matte black powder-coated aluminium - H. 750mm | ||
511970W | Matte white powder-coated aluminium - H.750mm | ||
511971W | Matte white powder-coated aluminium - H.1,130mm |
VARIANTS
511970C | Metallised anthracite powder-coated aluminium - H.750mm | ||
---|---|---|---|
511971C | Metallised anthracite powder-coated aluminium - H.1,130mm | ||
511970BK | Matte black powder-coated aluminium - H. 750mm | ||
511970W | Matte white powder-coated aluminium - H.750mm | ||
511971W | Matte white powder-coated aluminium - H.1,130mm |
