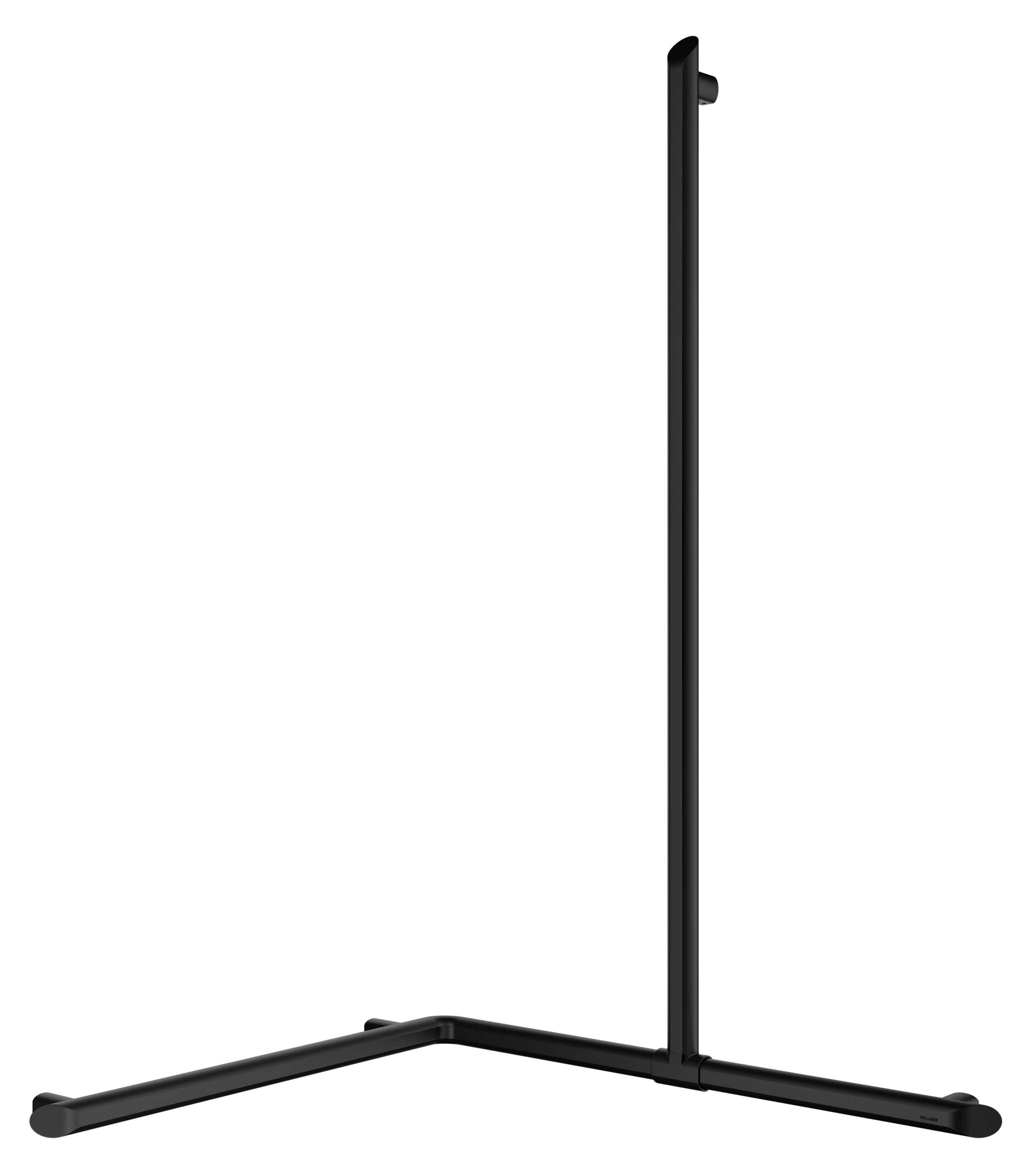

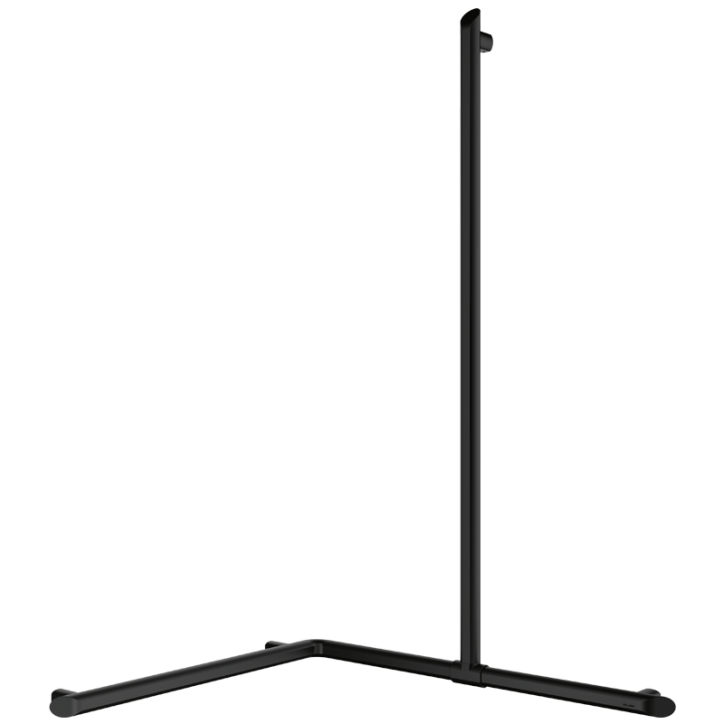

Be-line® corner grab bar with sliding vertical rail

Ref. 511949BK
Matte black powder-coated aluminium
Be-line® corner grab bar with sliding vertical rail

Presentation

DESCRIPTION

Be-line® corner grab bar with sliding vertical rail

Ref. 511949BK
Be-line® corner grab bar with sliding vertical rail Ø 35mm.
Use as a grab bar and to support the user in an upright position for people with reduced mobility.
Helps and secures entry and movement in the shower.

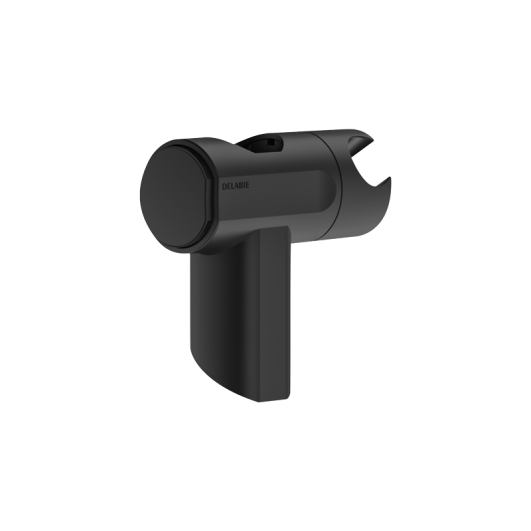

Use as a shower rail by adding a sliding shower head holder and/or soap dish.
Upright position can be adjusted during installation: can be moved to the left or the right in order to adapt the space (positioning of shower, depth of shower seat...).
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated aluminium finish provides a good visual contrast with light-coloured walls.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.

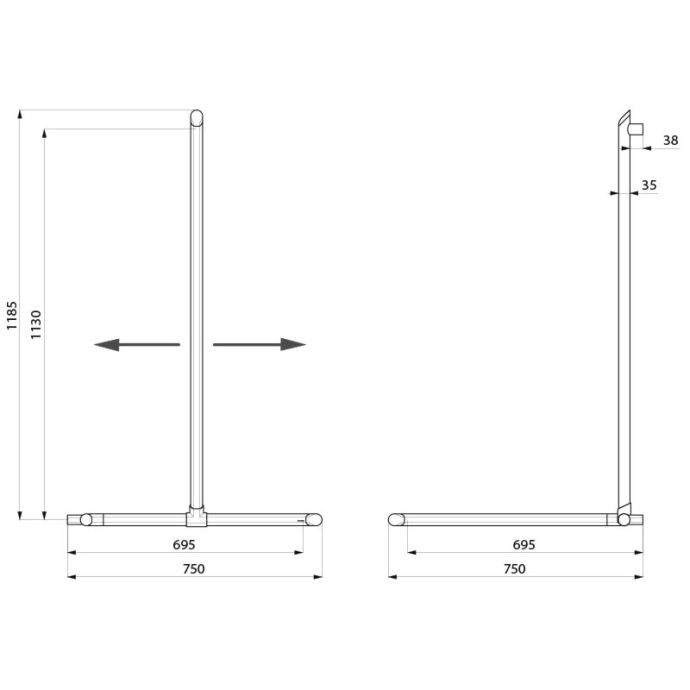

Dimensions: 1130 x 695 x 695mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Grab bar with 30-year warranty. CE marked.

ADVANTAGES

Design

Innovative design suitable for all users

Maintenance aisée - Installation aisée

Upright position can be adjusted

Confort - Ergonomie - Déclenchement souple

Comfort: ergonomic anti-rotation surface

Sécurité

Tested to over 200kg

Characteristics

TECHNICAL CHARACTERISTICS

Be-line® corner grab bar with sliding vertical rail

Ref. 511949BK
Height 1,130mm
Length 695mm
Width 695mm
Diameter Ø 35mm
Width to the wall 38mm
Thickness 3mm
Finish Matte black powder-coated aluminium
Certificates Logo CE
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Barre de douche d'angle avec remontée verticale coulissante Be-Line®

Ref. 511949BK

To download one or several documents linked to this product, please select the type of file you require :

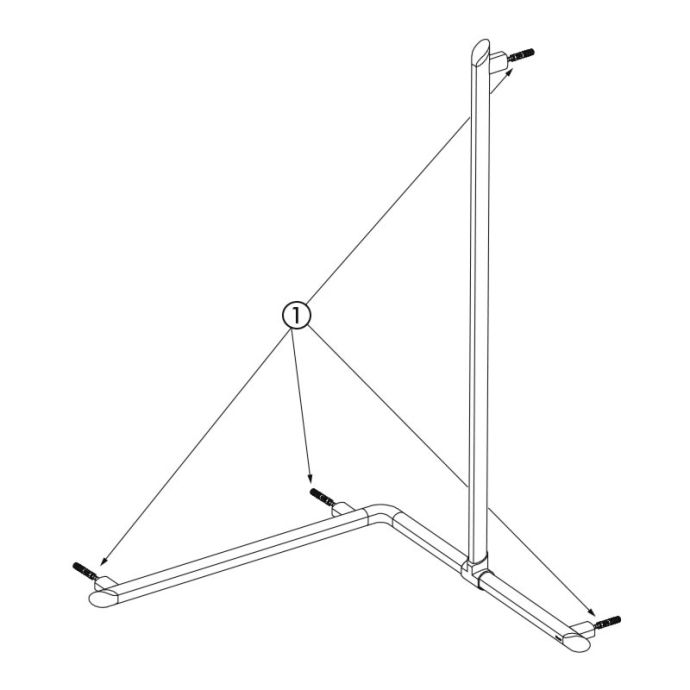

Spare parts

SPARE PARTS

Be-line® corner grab bar with sliding vertical rail

Ref. 511949BK
1. 5119FIX
Mounting kit for Be-Line® grab bars

VARIANTS

511949C Metallised anthracite powder-coated aluminium
511949W Matte white powder-coated aluminium
