DESCRIPTION

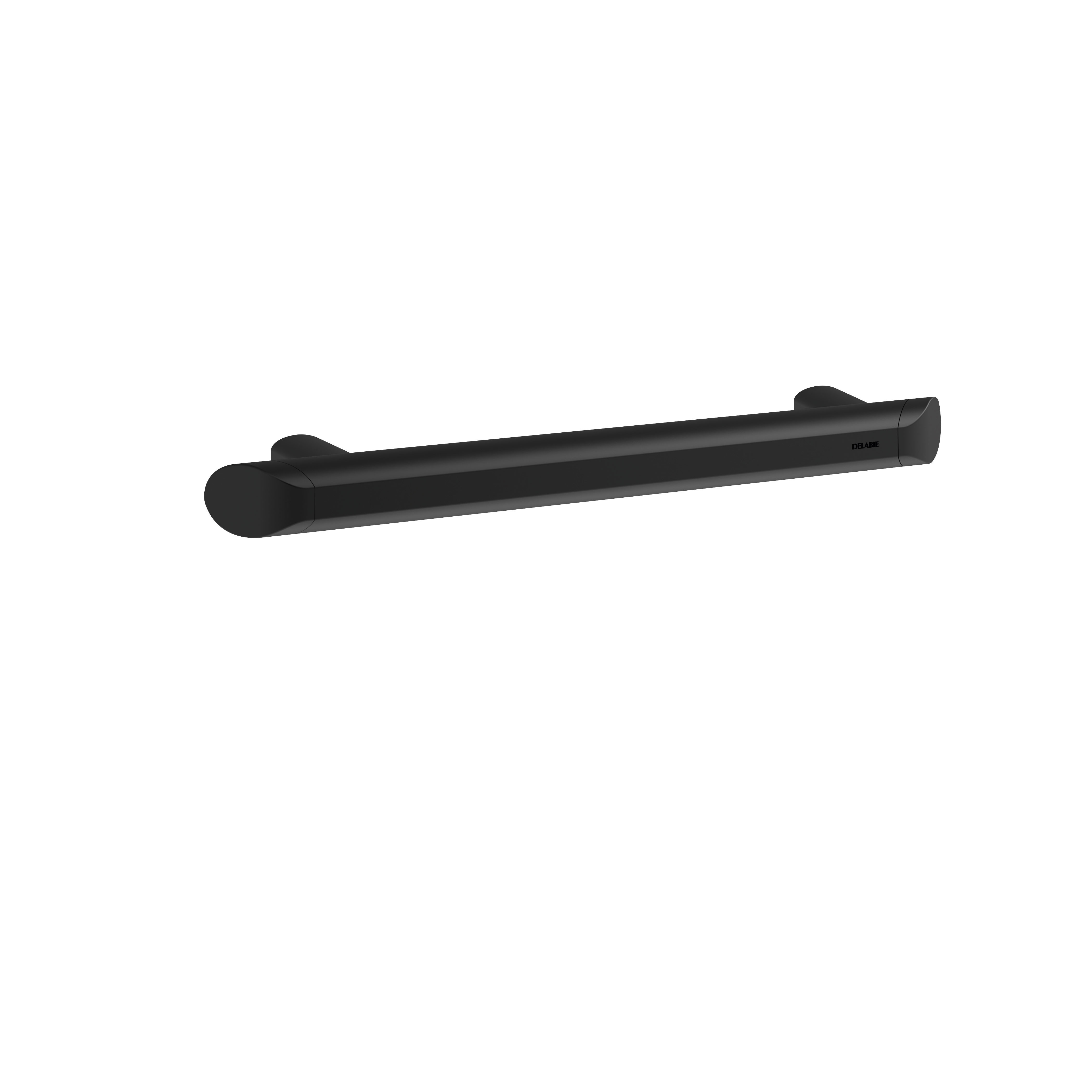

Be-Line® matte black grab bar, 300mm Ø 35mm
Ref. 511903BKBe-Line® grab bar Ø 35mm, for people with reduced mobility.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
300mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Grab bar with a 30-year warranty. CE marked.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte black powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
300mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Grab bar with a 30-year warranty. CE marked.
ADVANTAGES
![Design](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/4/9/2/2945-12-eng-US/design.png)
Innovative design for all
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Comfort: ergonomic anti-rotation surface
![Sécurité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/2/1/3/3127-12-eng-US/securite.png)
Tested to over 200kg
![Faible espacement au mur - Encombrement limité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/8/9/2/2987-12-eng-US/encombrement-limite.png)
38mm gap between bar and wall: space saving
TECHNICAL CHARACTERISTICS
Be-Line® matte black grab bar, 300mm Ø 35mm
Ref. 511903BKLength | 300mm |
Diameter | Ø 35mm |
Thickness | 3mm |
Finish | Matte black 304 stainless steel |
Certificates |
![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts
SPARE PARTS
Be-Line® matte black grab bar, 300mm Ø 35mm
Ref. 511903BK![](https://www.delabie.com/var/site/storage/images/7/6/3/1/3521367-1-fre-FR/PD_511903BK.jpg)
1. | 5119FIX |
|
Mounting kit for Be-Line® grab bars |
VARIANTS
511903C | Metallised anthracite powder-coated aluminium - 300mm | ||
---|---|---|---|
511903W | Matte white powder-coated aluminium - 300mm | ||
511904BK | Matte black powder-coated aluminium - 400mm | ||
511904C | Metallised anthracite powder-coated aluminium - 400mm | ||
511904W | Matte white powder-coated aluminium - 400mm | ||
511905BK | Matte black powder-coated aluminium - 500mm | ||
511905C | Metallised anthracite powder-coated aluminium - 500mm | ||
511905W | Matte white powder-coated aluminium - 500mm | ||
511906BK | Matte black powder-coated aluminium - 600mm | ||
511906C | Metallised anthracite powder-coated aluminium - 600mm | ||
511906W | Matte white powder-coated aluminium - 600mm | ||
511909BK | Matte black powder-coated aluminium - 900mm | ||
511909C | Metallised anthracite powder-coated aluminium - 900mm | ||
511909W | Matte white powder-coated aluminium - 900mm |
VARIANTS
511903C | Metallised anthracite powder-coated aluminium - 300mm | ||
---|---|---|---|
511903W | Matte white powder-coated aluminium - 300mm | ||
511904BK | Matte black powder-coated aluminium - 400mm | ||
511904C | Metallised anthracite powder-coated aluminium - 400mm | ||
511904W | Matte white powder-coated aluminium - 400mm | ||
511905BK | Matte black powder-coated aluminium - 500mm | ||
511905C | Metallised anthracite powder-coated aluminium - 500mm | ||
511905W | Matte white powder-coated aluminium - 500mm | ||
511906BK | Matte black powder-coated aluminium - 600mm | ||
511906C | Metallised anthracite powder-coated aluminium - 600mm | ||
511906W | Matte white powder-coated aluminium - 600mm | ||
511909BK | Matte black powder-coated aluminium - 900mm | ||
511909C | Metallised anthracite powder-coated aluminium - 900mm | ||
511909W | Matte white powder-coated aluminium - 900mm |
