TEMPOFIX 3 self-supporting frame system for WCs
Ref. 564005BE
For TEMPOMATIC electronic mains supply valve - Ø 90mm
For TEMPOMATIC electronic mains supply valve - Ø 90mm
DESCRIPTION

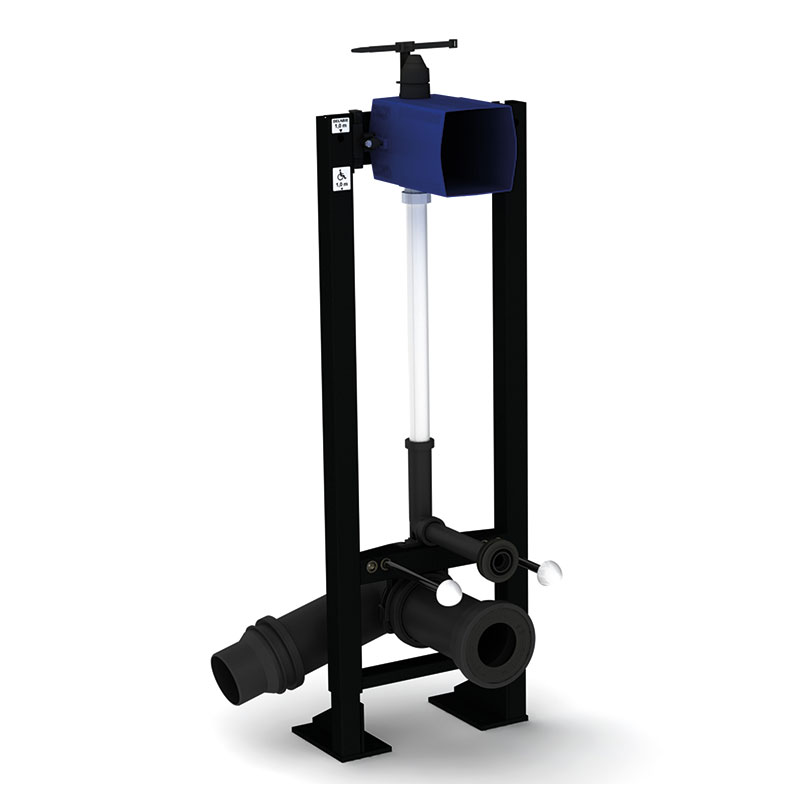

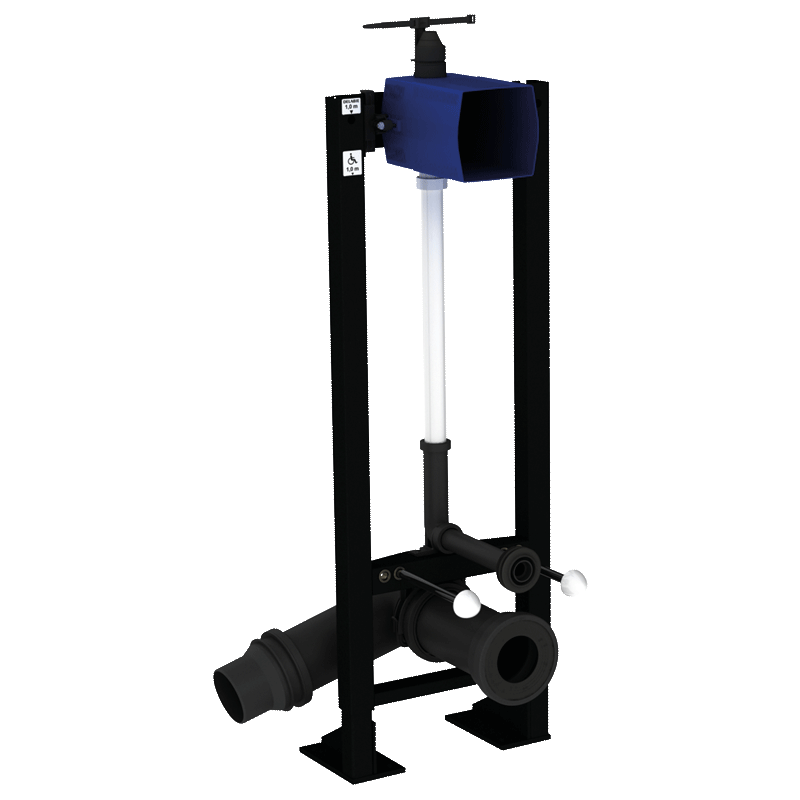

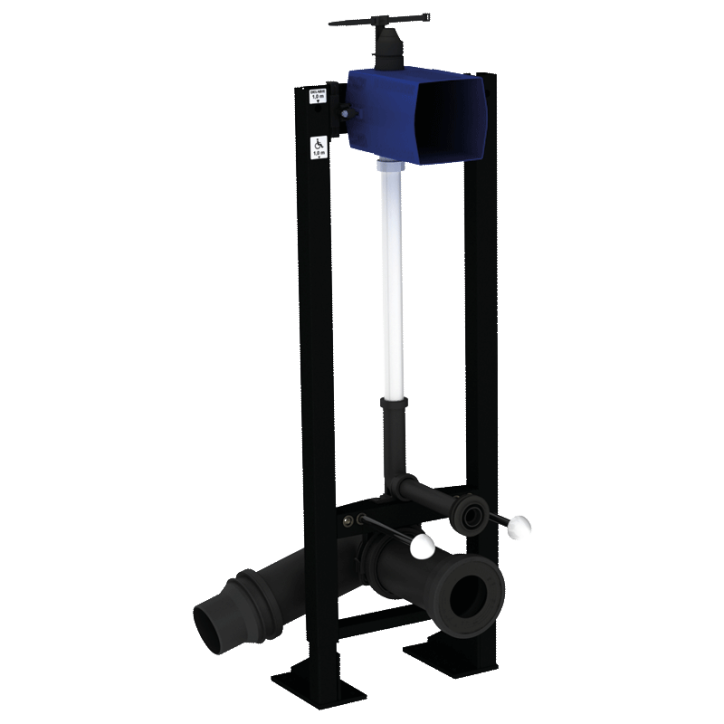

TEMPOFIX 3 self-supporting frame system for WCs
Ref. 564005BESelf-supporting frame system for wall-hung WCs, kit 1/2:
Black powder-coated steel frame:
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 90mm HDPE outlet with waterproof seal, with 2 setting positions.
Recessed waterproof housing: flush system without cistern, directly connected to pipework.
- Compatible with TEMPOMATIC dual control and TEMPOMATIC Connect electronic WC valves.
- Compatible with 230/6V mains supply.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.
Order with control plate references 464000, 464050, 465000 or 465050.
Black powder-coated steel frame:
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Compatible with solid walls from 10 - 120mm.
- Ø 32mm flush tube with Ø 55mm connection washer.
- ABS soil pipe, Ø 90mm HDPE outlet with waterproof seal, with 2 setting positions.
Recessed waterproof housing: flush system without cistern, directly connected to pipework.
- Compatible with TEMPOMATIC dual control and TEMPOMATIC Connect electronic WC valves.
- Compatible with 230/6V mains supply.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate regulation.
Supplied pre-mounted.
30-year warranty.
Order with control plate references 464000, 464050, 465000 or 465050.
ADVANTAGES
Quick and easy to install: delivered pre-mounted
Space-saving
Adapt to wall thickness
Compatible with mains supply

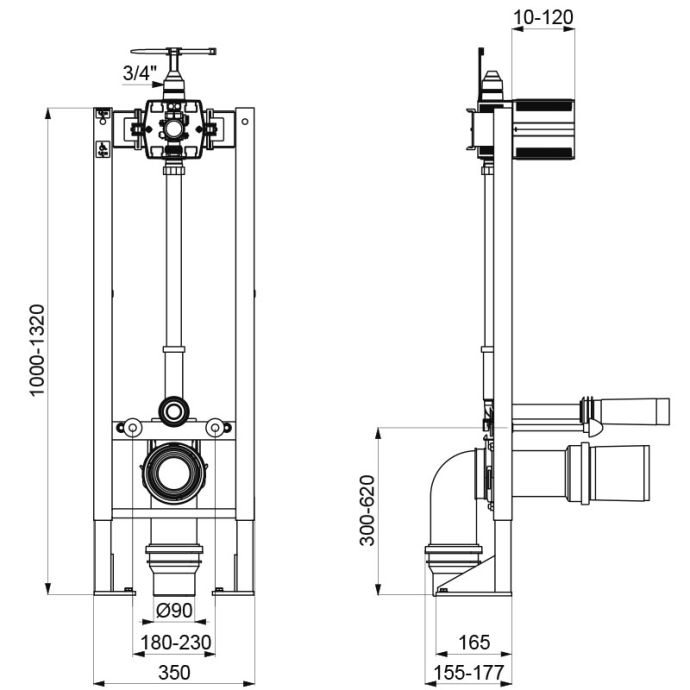

TECHNICAL CHARACTERISTICS
TEMPOFIX 3 self-supporting frame system for WCs
Ref. 564005BEConnector | ¾" |
Technology | Electronic and time flow |
Height | 1000 to 1320mm |
Depth | 157 - 177mm |
Width | 350mm |
Diameter | Ø 90mm outlet |
Finish | Black powder-coated steel |
Certificates | |
Warranty |
